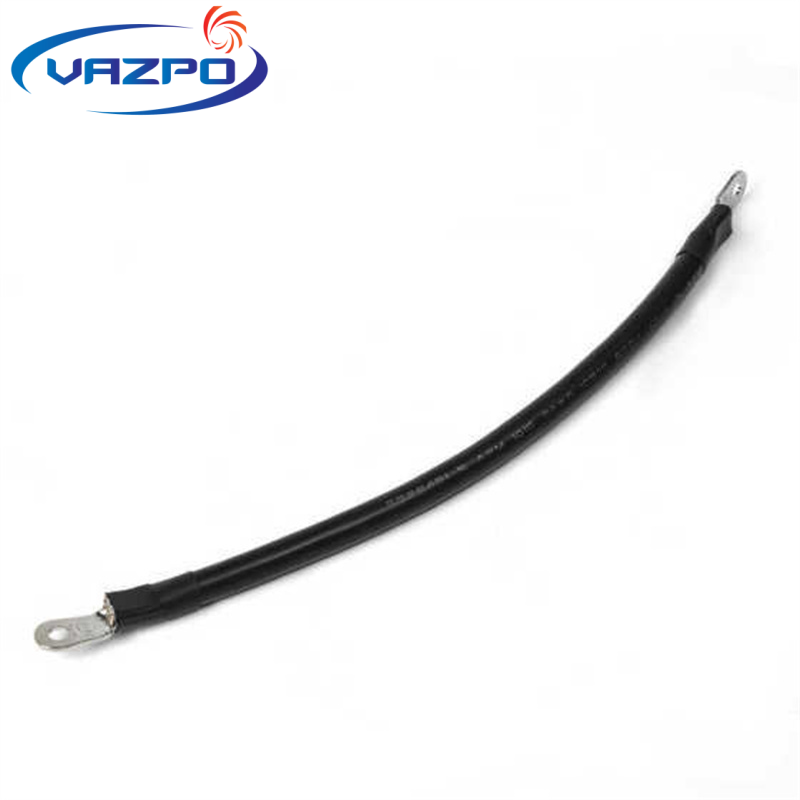

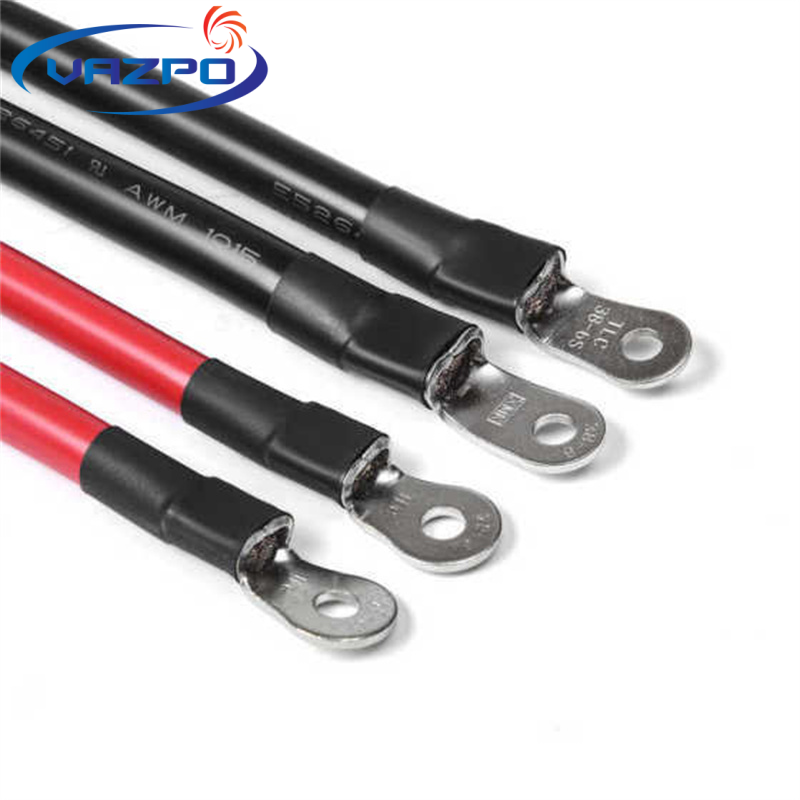

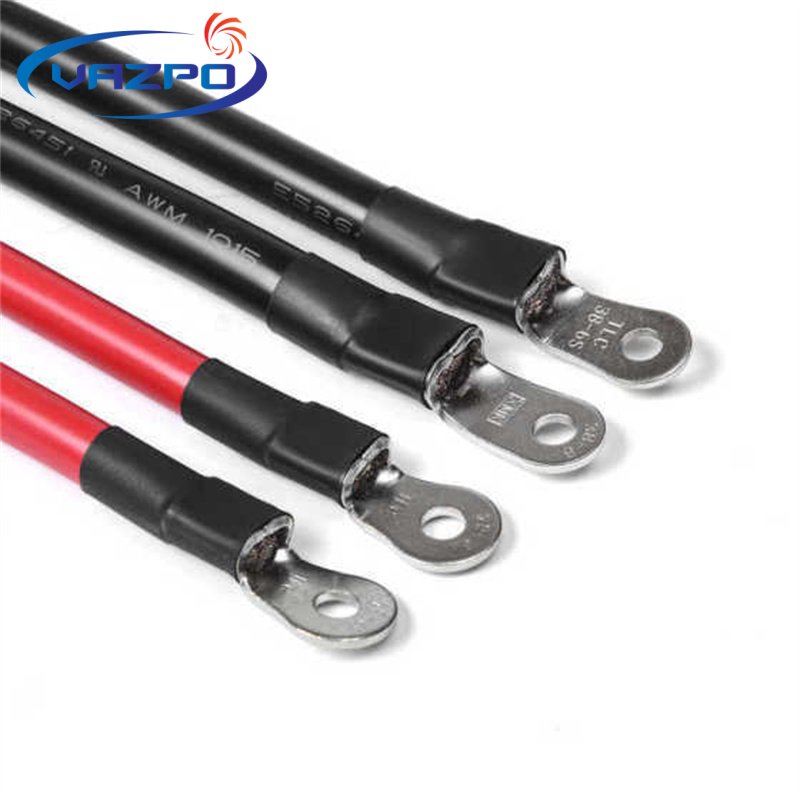

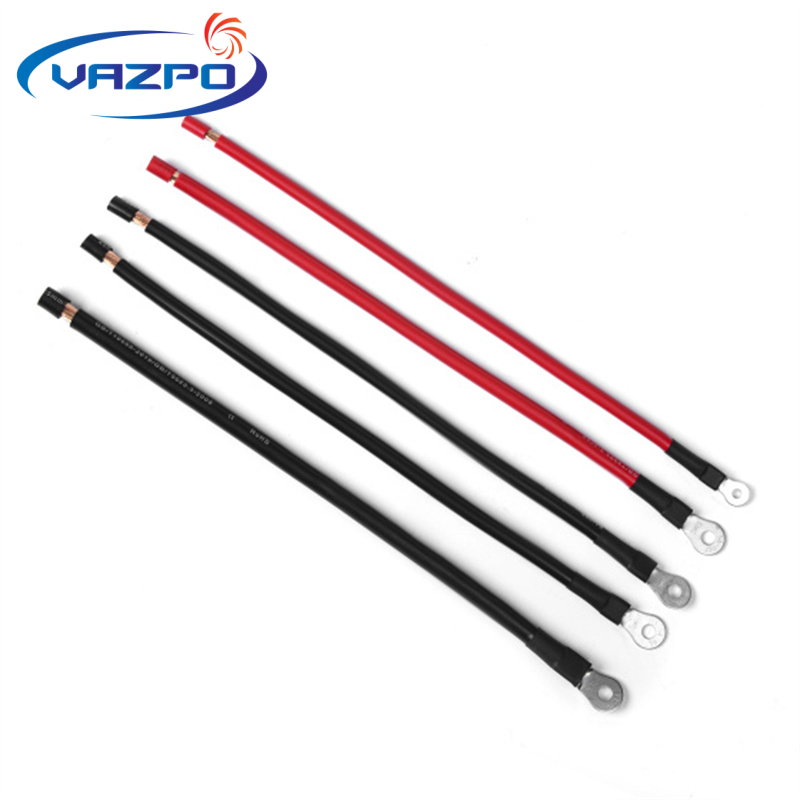

Battery Cable Wire Inverter Red Black 10mm

*High Current Capacity: Designed to handle high power loads, ensuring efficient energy transfer.

*Pure Copper Conductors: Provides excellent conductivity with minimal energy loss for reliable performance.

*Durable Insulation: Offers abrasion resistance and protection from environmental factors, ensuring long-lasting durability.

*Wide Application: Ideal for a range of applications, including cars, boats, solar systems, and more.

*Quote Online Now, Contact Us, Free Samples Available.

    Application

    Battery cables are crucial for connecting batteries to key components like engines, electrical systems, and more. In vehicles such as cars, trucks, and motorcycles, they ensure reliable power for starting engines and running electrical systems. In marine applications, they power onboard systems in boats and ships. For RVs and campers, they supply power to essential systems like lighting and climate control. In solar energy systems, battery cables connect solar panels to batteries and inverters, enabling efficient energy storage and transfer. Additionally, in industrial settings, they power machinery and equipment, ensuring smooth operation in various work environments.

    Structure

    Conductor: high purity copper
    Insulation: PVC, TPE, XLPE
    Terminal: copper/tinned copper

    Features

    1. Model: ZC-RV, UL1015, UL10269
    2. Rated voltage: 450/750V, 0.6/1kv
    3. Rated temperature: 70℃, 105℃

    Physical Properties

    1. Test object Ttem: Insulation
    2. Tensile strength(MPa): ≥10.3
    3. Elongation(%):  ≥100%
    4. Aging Condition: 136℃/168h
    5. Tensile strength(%): ≥70
    6. Elongation(%): ≥65

    Installation

    1. Easy Installation: Flexible and lightweight, making it perfect for tight spaces like engine bays, RVs, and marine systems.
    2. Proper Termination: Use high-quality copper or tinned copper terminals with secure crimping or soldering for optimal conductivity and safety.
    3. Maintenance: Avoid excessive bending, sharp edges, and abrasion to prevent insulation damage, ensuring long-term durability and reliable performance.

    Specification

    Specification Construction No m.thinckness(mm) lns u.Dia.(mm) Max.Cond.Res ist ance(20°C) Packing
    22AWG 17/0.16 0. 76 2.40 59.4Ω/KM 610m/reel
    20AWG 26/0.16 0. 76 2.55 36.7Ω/KM 610m/reel
    18AWG 41/0.16 0. 76 2.75 23.2Ω/KM 610m/reel
    16AWG 26/0.254 0. 76 3.10 14.6Ω/KM 305m/reel
    14AWG 41/0.254 0. 76 3.50 8.96Ω/KM 305m/reel
    12AWG 65/0.254 0. 76 3.90 5.64Ω/KM 305m/reel
    10AWG 105/0.254 0. 76 5.10 3.55Ω/KM 305m/reel
    9AWG 133/0.254 0. 76 5.50 2.81Ω/KM 100m/reel
    8AWC 164/0.254 1.14 6.60 2.23Ω/KM 100m/reel
    7AWG 210/0.254 1.14 7.20 1.768Ω/KM 100m/reel
    6AWG 260/0.254 1.52 8.50 1.403Ω/KM 100m/reel
    5AWG 329/0.254 1.52 8.90 1.113Ω/KM 100m/reel
    4AWG 413/0.254 1.52 9.80 0.882Ω/KM 100m/reel
    3AWG 518/0.254 1.52 10.30 0.700Ω/KM 100m/reel
    2AWC 658/0.254 1.52 12.10 0.555Ω/KM 100m/reel
    1AWG 816/0.254 2. 03 13.70 0.440Ω/KM 100m/reel
    1/0AWG 1032/0.254 2. 03 15.00 0.348Ω/KM 100m/reel
    2/0AWG 1311/0.254 2. 03 16.80 0.277Ω/KM 100m/reel
    3/0AWG 1653/0.254 2. 03 17.80 0.219Ω/KM 100m/reel
    4/0AWG 2090/0.254 2. 03 19.60 0.172Ω/KM 100m/reel
