Battery Cable
01

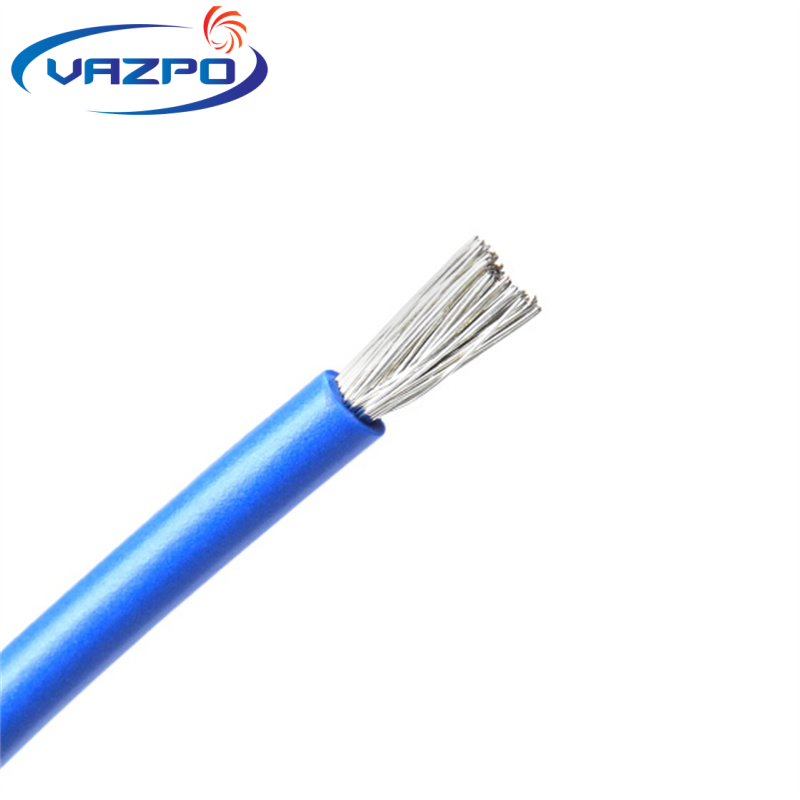

Tinned Copper Solar Battery Cable
Application
Battery cables are essential for connecting batteries to key components like engines, alternators, and electrical systems, ensuring efficient power transmission. They are widely used in cars, trucks, RVs, and campers to provide reliable power for starting engines and running onboard electronics. In marine applications, they supply power to boat engines and navigation systems while withstanding harsh environments. In solar energy systems, battery cables connect batteries to inverters and other components, ensuring efficient energy storage and transfer. Additionally, they are used in industrial machinery, backup power systems, and various electrical equipment, providing stable and consistent power for diverse applications.
Structure
Conductor: high purity copper
Insulation: PVC, TPE, XLPE
Terminal: copper/tinned copper
Features
1. Model: ZC-RV, UL1015, UL10269
2. Rferrnce Standard: GB/15023.3-2008、UL 758、 UL1581
3. Rated voltage: 450/750V, 0.6/1kv
4. Rated temperature: 70℃, 105℃
5. Dielectric strength(kV/1min): 3KVAC/1min,No Break
Physical Properties
1. Test object Ttem: Insulation
2. Tensile strength（MPa): ≥10.3
3. Elongation（%): ≥100%
4. Aging Condition: 136℃/168h
5. Tensile strength（%): ≥70
6. Elongation（%): ≥65
Installation
1. Easy Installation: Flexible and lightweight, ideal for tight spaces like engine bays and RVs.
2. Proper Termination: Use copper or tinned copper terminals for optimal electrical contact and safety.
3. Maintenance: Prevent insulation damage by avoiding excessive bending, sharp edges, and abrasion, ensuring long-term durability and reliable performance.
Specification
| Specification | Construction | No m.thinckness(mm) | lns u.Dia.(mm) | Max.Cond.Res ist ance(20°C) | Packing |
| 22AWG | 17/0.16 | 0. 76 | 2.40 | 59.4Ω/KM | 610m/reel |
| 20AWG | 26/0.16 | 0. 76 | 2.55 | 36.7Ω/KM | 610m/reel |
| 18AWG | 41/0.16 | 0. 76 | 2.75 | 23.2Ω/KM | 610m/reel |
| 16AWG | 26/0.254 | 0. 76 | 3.10 | 14.6Ω/KM | 305m/reel |
| 14AWG | 41/0.254 | 0. 76 | 3.50 | 8.96Ω/KM | 305m/reel |
| 12AWG | 65/0.254 | 0. 76 | 3.90 | 5.64Ω/KM | 305m/reel |
| 10AWG | 105/0.254 | 0. 76 | 5.10 | 3.55Ω/KM | 305m/reel |
| 9AWG | 133/0.254 | 0. 76 | 5.50 | 2.81Ω/KM | 100m/reel |
| 8AWC | 164/0.254 | 1.14 | 6.60 | 2.23Ω/KM | 100m/reel |
| 7AWG | 210/0.254 | 1.14 | 7.20 | 1.768Ω/KM | 100m/reel |
| 6AWG | 260/0.254 | 1.52 | 8.50 | 1.403Ω/KM | 100m/reel |
| 5AWG | 329/0.254 | 1.52 | 8.90 | 1.113Ω/KM | 100m/reel |
| 4AWG | 413/0.254 | 1.52 | 9.80 | 0.882Ω/KM | 100m/reel |
| 3AWG | 518/0.254 | 1.52 | 10.30 | 0.700Ω/KM | 100m/reel |
| 2AWC | 658/0.254 | 1.52 | 12.10 | 0.555Ω/KM | 100m/reel |
| 1AWG | 816/0.254 | 2. 03 | 13.70 | 0.440Ω/KM | 100m/reel |
| 1/0AWG | 1032/0.254 | 2. 03 | 15.00 | 0.348Ω/KM | 100m/reel |
| 2/0AWG | 1311/0.254 | 2. 03 | 16.80 | 0.277Ω/KM | 100m/reel |
| 3/0AWG | 1653/0.254 | 2. 03 | 17.80 | 0.219Ω/KM | 100m/reel |
| 4/0AWG | 2090/0.254 | 2. 03 | 19.60 | 0.172Ω/KM | 100m/reel |
