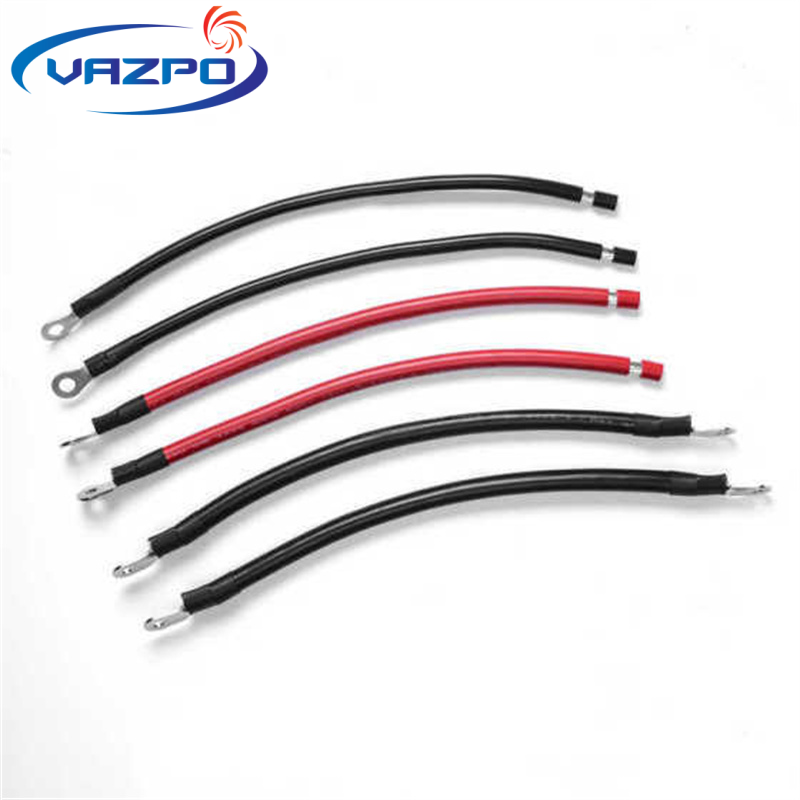

2awg 4awg Solar Inverter Battery Cable
Application
Battery cables are widely used in automotive applications, including cars, trucks, RVs, and motorcycles, where they connect batteries to starters, alternators, and electrical systems. In marine and boating environments, they provide reliable power for engines, navigation systems, and onboard electronics while withstanding harsh conditions. They are also essential in renewable energy systems, ensuring efficient energy transmission in solar battery storage applications. In industrial and heavy equipment, battery cables support forklifts, construction machinery, and backup power systems. Additionally, they play a crucial role in off-grid and backup power solutions, such as generators and UPS systems, ensuring a stable and continuous power supply.
Structure
Conductor: high purity copper
Insulation: PVC, TPE, XLPE
Terminal: copper/tinned copper
Features
1. Model: ZC-RV, UL1015, UL10269
2. Rated voltage: 450/750V, 0.6/1kv
3. Rated temperature: 70℃, 105℃
Physical Properties
1. Test object Ttem: Insulation
2. Tensile strength（MPa): ≥10.3
3. Elongation（%): ≥100%
4. Aging Condition: 136℃/168h
5. Tensile strength（%): ≥70
6. Elongation（%): ≥65
Installation
1. Flexible Installation: Designed for easy routing in confined spaces such as engine compartments, RVs, and marine systems.
2. Secure Connections: Use high-quality copper or tinned copper terminals with proper crimping or soldering for optimal conductivity and safety.
3. Protection & Maintenance: Avoid sharp bends and abrasion against rough surfaces to prevent insulation damage and ensure long-term reliability.
Specification
| Specification | Construction | No m.thinckness(mm) | lns u.Dia.(mm) | Max.Cond.Res ist ance(20°C) | Packing |
| 22AWG | 17/0.16 | 0. 76 | 2.40 | 59.4Ω/KM | 610m/reel |
| 20AWG | 26/0.16 | 0. 76 | 2.55 | 36.7Ω/KM | 610m/reel |
| 18AWG | 41/0.16 | 0. 76 | 2.75 | 23.2Ω/KM | 610m/reel |
| 16AWG | 26/0.254 | 0. 76 | 3.10 | 14.6Ω/KM | 305m/reel |
| 14AWG | 41/0.254 | 0. 76 | 3.50 | 8.96Ω/KM | 305m/reel |
| 12AWG | 65/0.254 | 0. 76 | 3.90 | 5.64Ω/KM | 305m/reel |
| 10AWG | 105/0.254 | 0. 76 | 5.10 | 3.55Ω/KM | 305m/reel |
| 9AWG | 133/0.254 | 0. 76 | 5.50 | 2.81Ω/KM | 100m/reel |
| 8AWC | 164/0.254 | 1.14 | 6.60 | 2.23Ω/KM | 100m/reel |
| 7AWG | 210/0.254 | 1.14 | 7.20 | 1.768Ω/KM | 100m/reel |
| 6AWG | 260/0.254 | 1.52 | 8.50 | 1.403Ω/KM | 100m/reel |
| 5AWG | 329/0.254 | 1.52 | 8.90 | 1.113Ω/KM | 100m/reel |
| 4AWG | 413/0.254 | 1.52 | 9.80 | 0.882Ω/KM | 100m/reel |
| 3AWG | 518/0.254 | 1.52 | 10.30 | 0.700Ω/KM | 100m/reel |
| 2AWC | 658/0.254 | 1.52 | 12.10 | 0.555Ω/KM | 100m/reel |
| 1AWG | 816/0.254 | 2. 03 | 13.70 | 0.440Ω/KM | 100m/reel |
| 1/0AWG | 1032/0.254 | 2. 03 | 15.00 | 0.348Ω/KM | 100m/reel |
| 2/0AWG | 1311/0.254 | 2. 03 | 16.80 | 0.277Ω/KM | 100m/reel |
| 3/0AWG | 1653/0.254 | 2. 03 | 17.80 | 0.219Ω/KM | 100m/reel |
| 4/0AWG | 2090/0.254 | 2. 03 | 19.60 | 0.172Ω/KM | 100m/reel |
