Battery Cable
01

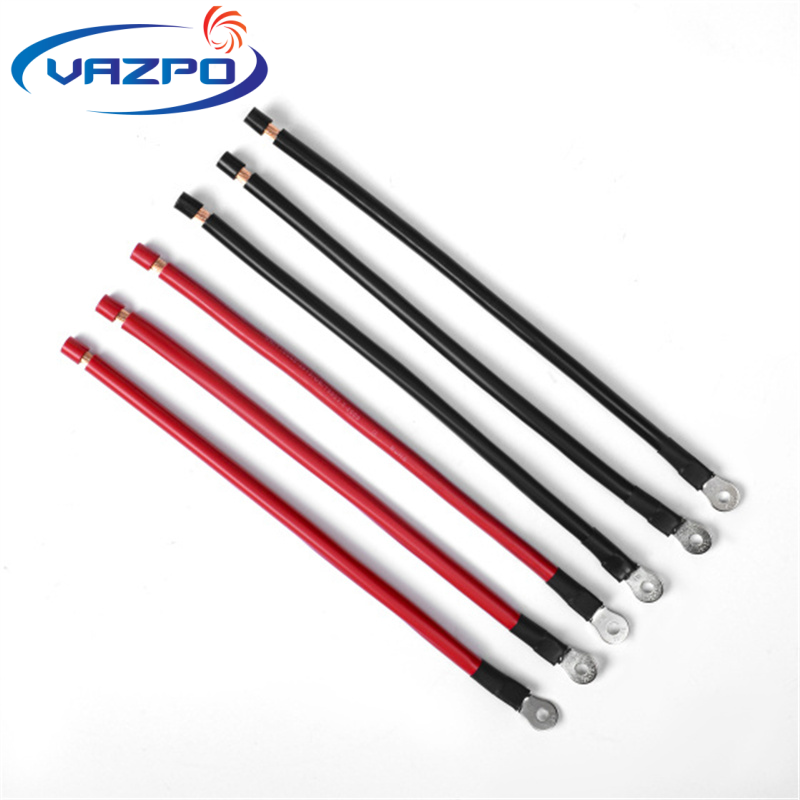

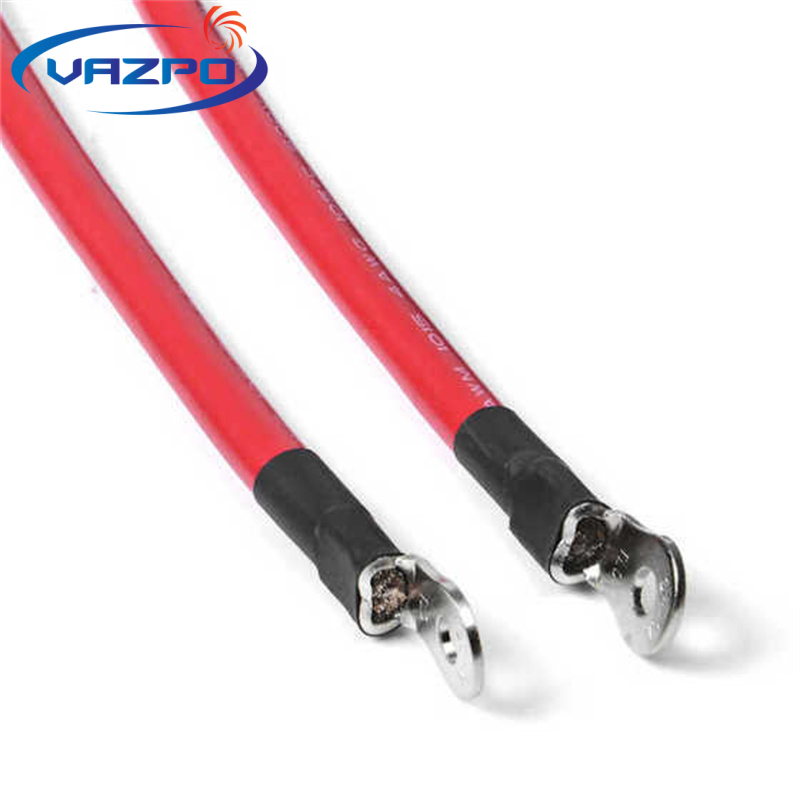

2 Awg Gauge Automotive Car Battery Cable
Application
Battery cables are essential for connecting batteries to crucial components like engines, ensuring reliable current transmission. These cables are widely used in automobiles, including cars, trucks, RVs, and campers, as well as in marine applications and solar power systems. They are also found in various other electrical equipment across industries. Battery cables are designed to ensure a stable power supply, which is critical for maintaining smooth operations in both mobile and stationary power systems. Whether used in automotive, renewable energy, or industrial settings, these cables are integral for efficient energy transmission, long-term reliability, and energy efficiency. Their flexibility and durability make them suitable for diverse environments, ensuring uninterrupted performance across a wide range of applications.
Structure
Conductor: high purity copper
Insulation: PVC, TPE, XLPE
Terminal: copper/tinned copper
Features
1. Model: ZC-RV, UL1015, UL10269
2. Rferrnce Standard: GB/15023.3-2008、UL 758、 UL1581
3. Rated voltage: 450/750V, 0.6/1kv
4. Rated temperature: 70℃, 105℃
5. Dielectric strength(kV/1min): 3KVAC/1min, No Break
Physical Properties
1. Test object Ttem: Insulation
2. Tensile strength（MPa): ≥10.3
3. Elongation（%): ≥100%
4. Aging Condition: 136℃/168h
5. Tensile strength（%): ≥70
6. Elongation（%): ≥65
Installation
1. Easy Installation: Flexible and lightweight, ideal for tight spaces like engine bays and RVs.
2. Proper Termination: Use copper or tinned copper terminals for optimal electrical contact and safety.
3. Maintenance: Avoid excessive bending and sharp edges to prevent insulation damage, ensuring long-term performance.
Specification
| Specification | Construction | No m.thinckness(mm) | lns u.Dia.(mm) | Max.Cond.Res ist ance(20°C) | Packing |
| 22AWG | 17/0.16 | 0. 76 | 2.40 | 59.4Ω/KM | 610m/reel |
| 20AWG | 26/0.16 | 0. 76 | 2.55 | 36.7Ω/KM | 610m/reel |
| 18AWG | 41/0.16 | 0. 76 | 2.75 | 23.2Ω/KM | 610m/reel |
| 16AWG | 26/0.254 | 0. 76 | 3.10 | 14.6Ω/KM | 305m/reel |
| 14AWG | 41/0.254 | 0. 76 | 3.50 | 8.96Ω/KM | 305m/reel |
| 12AWG | 65/0.254 | 0. 76 | 3.90 | 5.64Ω/KM | 305m/reel |
| 10AWG | 105/0.254 | 0. 76 | 5.10 | 3.55Ω/KM | 305m/reel |
| 9AWG | 133/0.254 | 0. 76 | 5.50 | 2.81Ω/KM | 100m/reel |
| 8AWC | 164/0.254 | 1.14 | 6.60 | 2.23Ω/KM | 100m/reel |
| 7AWG | 210/0.254 | 1.14 | 7.20 | 1.768Ω/KM | 100m/reel |
| 6AWG | 260/0.254 | 1.52 | 8.50 | 1.403Ω/KM | 100m/reel |
| 5AWG | 329/0.254 | 1.52 | 8.90 | 1.113Ω/KM | 100m/reel |
| 4AWG | 413/0.254 | 1.52 | 9.80 | 0.882Ω/KM | 100m/reel |
| 3AWG | 518/0.254 | 1.52 | 10.30 | 0.700Ω/KM | 100m/reel |
| 2AWC | 658/0.254 | 1.52 | 12.10 | 0.555Ω/KM | 100m/reel |
| 1AWG | 816/0.254 | 2. 03 | 13.70 | 0.440Ω/KM | 100m/reel |
| 1/0AWG | 1032/0.254 | 2. 03 | 15.00 | 0.348Ω/KM | 100m/reel |
| 2/0AWG | 1311/0.254 | 2. 03 | 16.80 | 0.277Ω/KM | 100m/reel |
| 3/0AWG | 1653/0.254 | 2. 03 | 17.80 | 0.219Ω/KM | 100m/reel |
| 4/0AWG | 2090/0.254 | 2. 03 | 19.60 | 0.172Ω/KM | 100m/reel |
