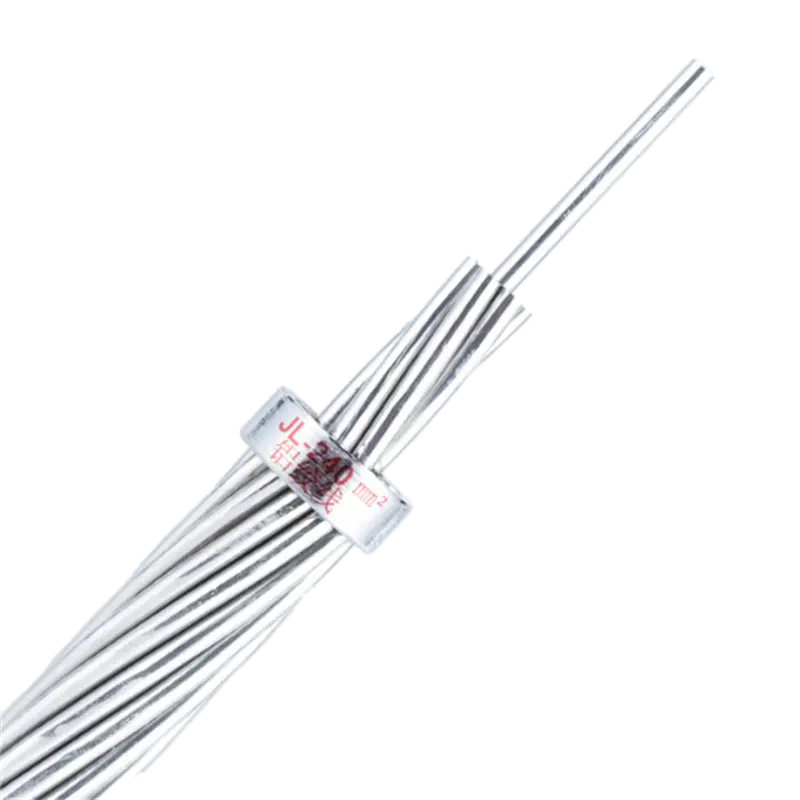

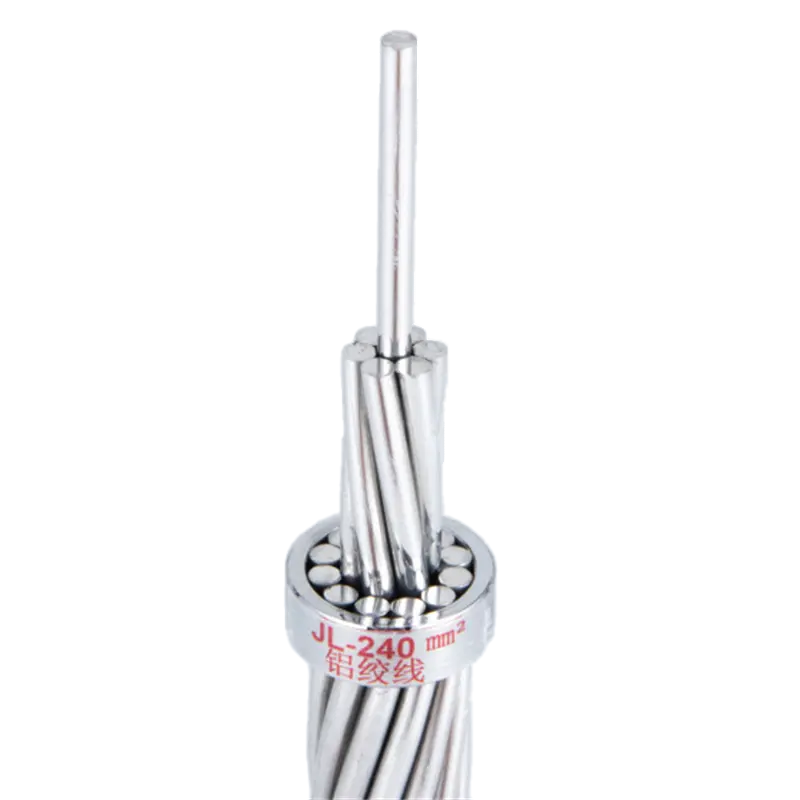

AAC All Aluminium Conductor Overhead
Application
AAC (All Aluminium Conductor) cables are widely used in power transmission and distribution due to their excellent conductivity, lightweight design, and corrosion resistance. They are ideal for urban power distribution, allowing easy installation on existing infrastructure with minimal modifications. In rural and mountainous areas, their lightweight construction simplifies transportation and installation, ensuring stable power supply in remote regions. AAC cables are also essential in industrial parks, delivering reliable power for large-scale operations. Additionally, they play a key role in renewable energy projects, efficiently connecting solar and wind power systems to the grid. Their corrosion-resistant properties make them well-suited for coastal and high-humidity environments, reducing maintenance needs. Designed for both overhead and underground applications, AAC cables offer a cost-effective solution for power utilities, minimizing infrastructure costs while ensuring long-term efficiency and reliability in diverse operating conditions.
Structure

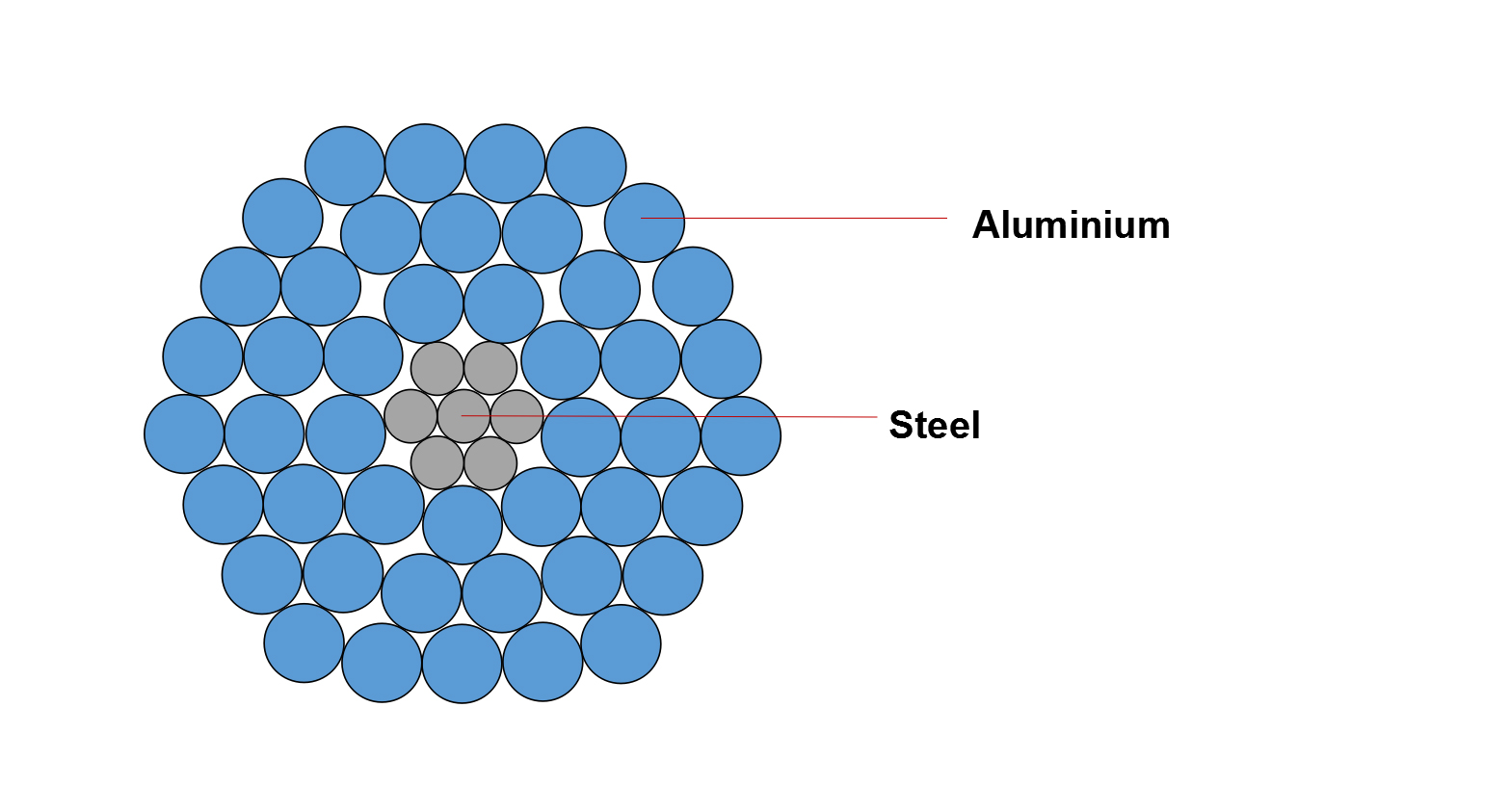

Conductor: Multi-strand aluminum wire and steel core
Material Composition: Manufactured from high-purity aluminum for optimal electrical performance and durability.
Features
1. Product standard: IEC 60502
2. Rated voltage: 1kV 11kV 33kV
3. Maximum operating temperature of conductor: 90℃
4. Cable shall be laid at no less than -20℃
5. Minimum allowable bending radius of the cable:
Cable with an outer diameter (D) less than 25mm shall have a diameter no less than 4D.
Cable with an outer diameter (D) of 25mm and above shall be not less than 6D.
Specification
| NO. | Cores×Nominal Cross-section | Strands No./Dia. of Conductor | Strands Outer Dia. | Approx .Weight | Tensile force | Max. D.C Resistance of Conductor at 20℃ | |||
| JLHA1 | JLHA2 | JLHA1 | JLHA2 | ||||||
| mm2 | n/mm | mm | kg/km | kN | kN | Ω/km | Ω/km | ||
| 1 | 16 | 7/1.71 | 5.13 | 44.0 | 5.22 | 4.74 | 2.0695 | 2.0500 | |
| 2 | 20 | 7/1.83 | 5.40 | 50.4 | 5.98 | 5.43 | 1.8070 | 1.7900 | |
| 3 | 25 | 7/2.13 | 6.30 | 68.3 | 8.11 | 7.36 | 1.3339 | 1.3213 | |
| 4 | 30 | 7/2.29 | 6.87 | 79.0 | 9.37 | 8.51 | 1.1540 | 1.1431 | |
| 5 | 35 | 7/2.52 | 7.56 | 95.6 | 11.35 | 10.3 | 0.9529 | 0.9439 | |
| 6 | 45 | 7/2.89 | 8.67 | 125.7 | 14.92 | 13.55 | 0.7246 | 0.7177 | |
| 7 | 50 | 7/3.02 | 9.06 | 137.3 | 16.30 | 14.79 | 0.6635 | 0.6573 | |
| 8 | 70 | 7/3.57 | 10.7 | 191.9 | 22.07 | 20.67 | 0.4748 | 0.4703 | |
| 9 | 75 | 7/3.63 | 10.9 | 198.4 | 22.82 | 21.37 | 0.4593 | 0.4549 | |
| 10 | 95 | 7/4.16 | 12.5 | 260.5 | 29.97 | 28.07 | 0.3497 | 0.3464 | |
| 11 | 120 | 19/2.78 | 13.9 | 317.3 | 37.48 | 34.02 | 0.2899 | 0.2871 | |
| 12 | 145 | 19/3.10 | 15.5 | 394.6 | 46.61 | 42.3 | 0.2331 | 0.2309 | |
| 13 | 150 | 19/3.17 | 15.9 | 412.6 | 48.74 | 44.24 | 0.2229 | 0.2208 | |
| 14 | 185 | 19/3.51 | 17.6 | 505.9 | 57.91 | 54.24 | 0.1818 | 0.1801 | |
| 15 | 210 | 19/3.75 | 18.8 | 577.4 | 66.10 | 61.91 | 0.1593 | 0.1578 | |
| 16 | 230 | 19/3.93 | 19.7 | 634.2 | 72.60 | 67.99 | 0.1451 | 0.1437 | |
| 17 | 240 | 19/4.01 | 20.1 | 660.3 | 75.59 | 70.79 | 0.1393 | 0.1380 | |
| 18 | 300 | 37/3.21 | 22.5 | 825.9 | 97.32 | 88.33 | 0.1119 | 0.1109 | |
| 19 | 360 | 37/3.53 | 24.7 | 998.8 | 114.1 | 106.80 | 0.0925 | 0.0917 | |
| 20 | 400 | 37/3.71 | 26.0 | 1103.2 | 126.0 | 118.00 | 0.0838 | 0.0830 | |
