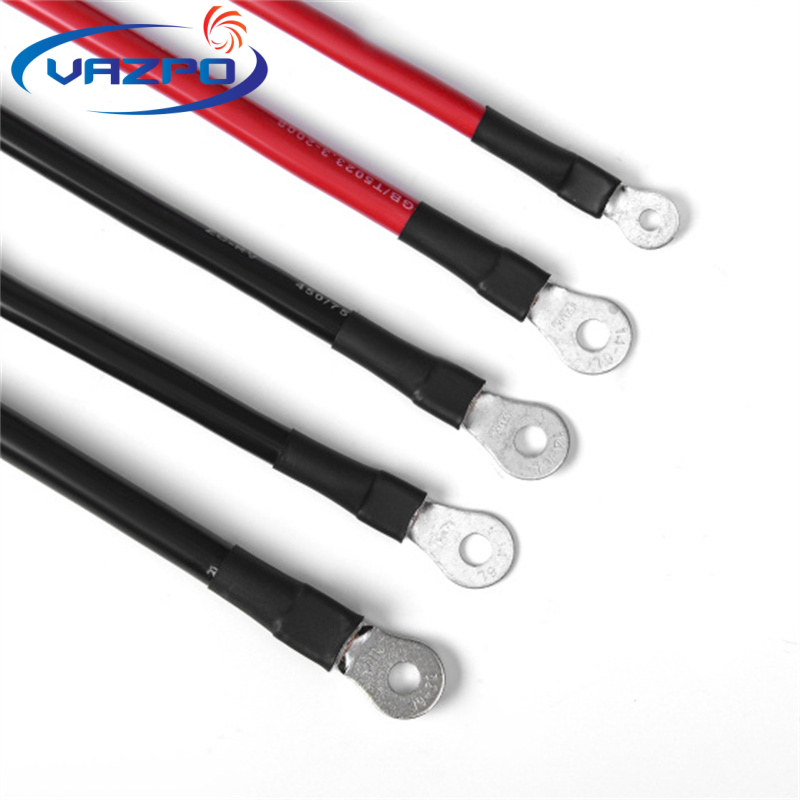

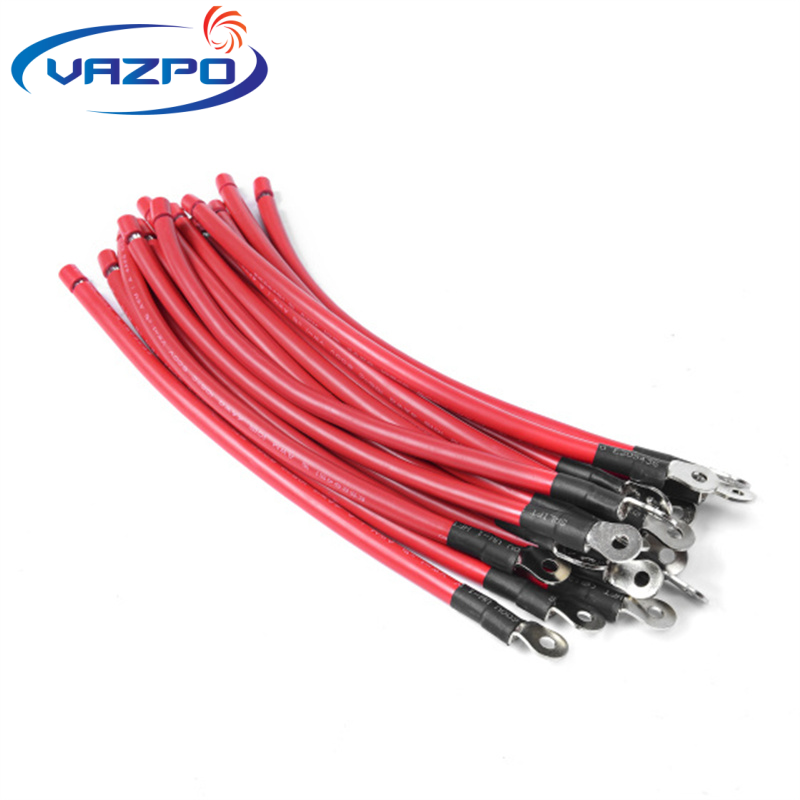

8 AWG Battery Cable 8 Gauge Power Inverter Cables
Application
Battery cables are widely used in cars, trucks, RVs, and motorcycles to connect batteries to starters, alternators, and other electrical systems, ensuring smooth operation. In boats and marine applications, they power engines, navigation systems, and onboard electronics while handling tough conditions. They're also a key part of solar energy storage, helping transfer power efficiently. In industrial settings, they keep forklifts, construction equipment, and backup power systems running reliably. Additionally, they’re essential for generators, UPS systems, and off-grid power setups, making sure there’s always a steady and stable power supply when needed.
Structure
Conductor: high purity copper
Insulation: PVC, TPE, XLPE
Terminal: copper/tinned copper
Features
1. Model: ZC-RV, UL1015, UL10269
2. Rated voltage: 450/750V, 0.6/1kv
3. Rated temperature: 70℃, 105℃
Physical Properties
1. Test object Ttem: Insulation
2. Tensile strength（MPa): ≥10.3
3. Elongation（%): ≥100%
4. Aging Condition: 136℃/168h
5. Tensile strength（%): ≥70
6. Elongation（%): ≥65
Installation
1. Flexible Installation: Designed for easy routing in confined spaces such as engine compartments, RVs, and marine systems.
2. Secure Connections: Use high-quality copper or tinned copper terminals with proper crimping or soldering for optimal conductivity and safety.
3. Protection & Maintenance: Avoid sharp bends and abrasion against rough surfaces to prevent insulation damage and ensure long-term reliability.
Specification
| Specification | Construction | No m.thinckness(mm) | lns u.Dia.(mm) | Max.Cond.Res ist ance(20°C) | Packing |
| 22AWG | 17/0.16 | 0. 76 | 2.40 | 59.4Ω/KM | 610m/reel |
| 20AWG | 26/0.16 | 0. 76 | 2.55 | 36.7Ω/KM | 610m/reel |
| 18AWG | 41/0.16 | 0. 76 | 2.75 | 23.2Ω/KM | 610m/reel |
| 16AWG | 26/0.254 | 0. 76 | 3.10 | 14.6Ω/KM | 305m/reel |
| 14AWG | 41/0.254 | 0. 76 | 3.50 | 8.96Ω/KM | 305m/reel |
| 12AWG | 65/0.254 | 0. 76 | 3.90 | 5.64Ω/KM | 305m/reel |
| 10AWG | 105/0.254 | 0. 76 | 5.10 | 3.55Ω/KM | 305m/reel |
| 9AWG | 133/0.254 | 0. 76 | 5.50 | 2.81Ω/KM | 100m/reel |
| 8AWC | 164/0.254 | 1.14 | 6.60 | 2.23Ω/KM | 100m/reel |
| 7AWG | 210/0.254 | 1.14 | 7.20 | 1.768Ω/KM | 100m/reel |
| 6AWG | 260/0.254 | 1.52 | 8.50 | 1.403Ω/KM | 100m/reel |
| 5AWG | 329/0.254 | 1.52 | 8.90 | 1.113Ω/KM | 100m/reel |
| 4AWG | 413/0.254 | 1.52 | 9.80 | 0.882Ω/KM | 100m/reel |
| 3AWG | 518/0.254 | 1.52 | 10.30 | 0.700Ω/KM | 100m/reel |
| 2AWC | 658/0.254 | 1.52 | 12.10 | 0.555Ω/KM | 100m/reel |
| 1AWG | 816/0.254 | 2. 03 | 13.70 | 0.440Ω/KM | 100m/reel |
| 1/0AWG | 1032/0.254 | 2. 03 | 15.00 | 0.348Ω/KM | 100m/reel |
| 2/0AWG | 1311/0.254 | 2. 03 | 16.80 | 0.277Ω/KM | 100m/reel |
| 3/0AWG | 1653/0.254 | 2. 03 | 17.80 | 0.219Ω/KM | 100m/reel |
| 4/0AWG | 2090/0.254 | 2. 03 | 19.60 | 0.172Ω/KM | 100m/reel |
