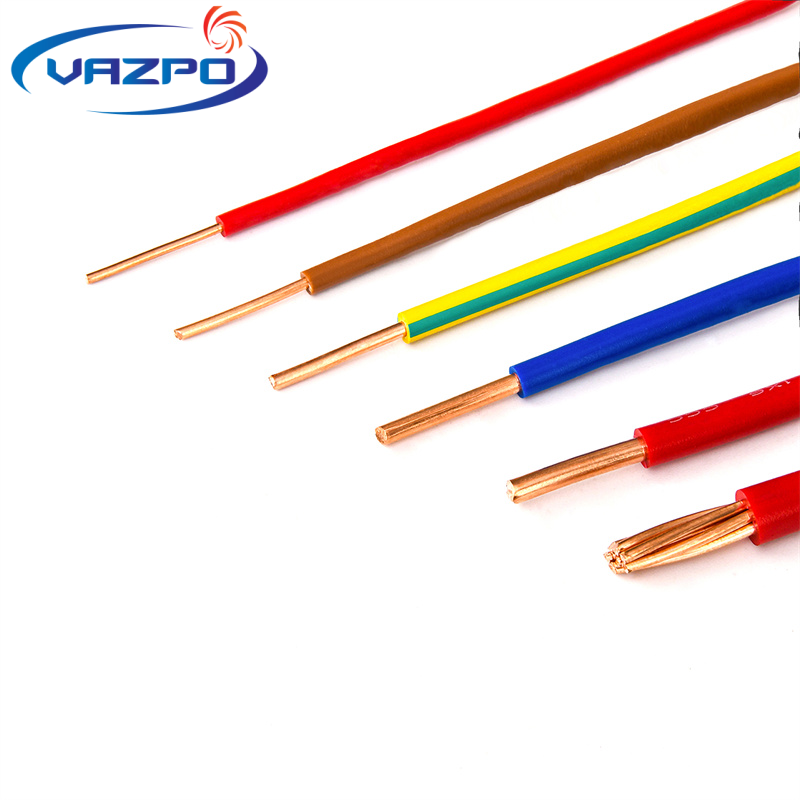

Single Core Solid Copper Building Wire
Application
Structure
Features
Specification
|
Model |
Factory Model |
Voltage level |
Product Name |
|

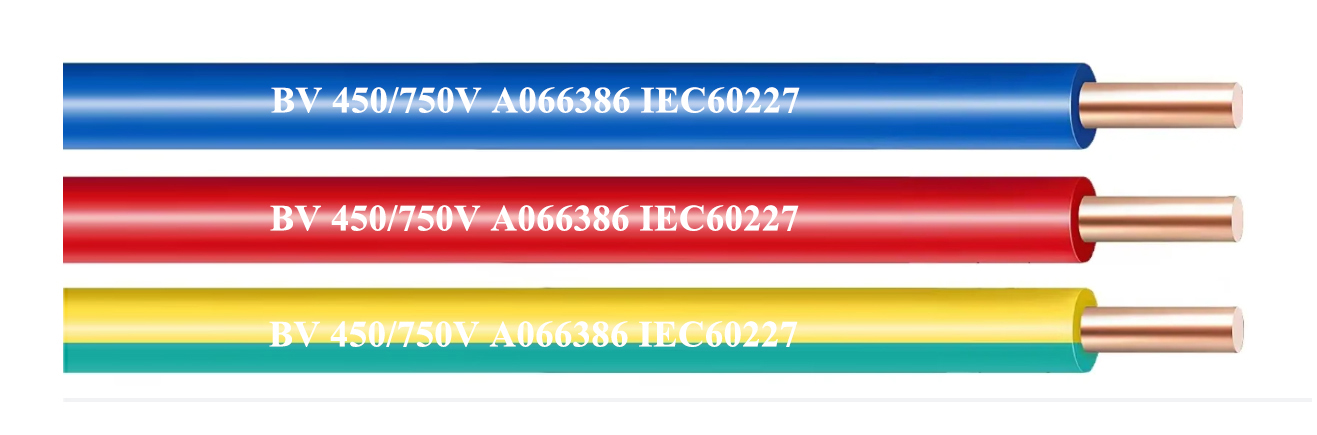

H07V-U |
BV |
450/750V |
Copper core PVC insulated cable |
|
H05V-U |
BV |
300/500V |
Copper core PVC insulated cable |
|
H05V-R |
BVR |
300/500V |
Copper core PVC insulated flexible cable |
|
H07V-R |
BVR |
450/750V |
Copper core PVC insulated flexible cable |
|
H07V-K |
RV |
450/750V |
Copper core PVC insulated PVC sheathed flat cable |
|
H05V-K |
RV |
300/500V |
Copper core PVC insulated flexible cable |
|
H05VV-F |
RVV |
300/500V |
Copper core PVC insulated PVC sheathed flexible round cable |
|
H03VV-F |
RVV |
300/300V |
Copper core PVC insulated PVC sheathed flexible round cable |
|
H05VVH2-F |
RVVB |
450/750V |
Copper core PVC insulated PVC sheathed flexible connection flat cable |
|
H03VVH2-F |
RVVB |
300/300V |
Copper core PVC insulated PVC sheathed flexible connection flat cable |
|
H05V-K |
RVS |
450/750V |
Copper core PVC insulated twisted flexible connection cable |
|
H05V-K |
RVB |
300/300V |
Copper core PVC insulated flexible flat cable for connection |
|
H05VV-F |
RVVP |
300/300V |
Copper core PVC insulated shielded flexible cable |
Single Core Solid Copper Building Wire
| No. Cross-section of conductor | Rated voltage | Conductor type | Conductor structure | Insulation thickness | Upper Limit of O.D | Reference weight of cable | Max. D.C resistance of conductor at 20 ℃ | Min. insulation resistance at 70℃ | Approx. ampacity | |
| Average | Thinnest | |||||||||
| mm2 | V | N/mm | mm | mm | mm | kg/km | Ω /km | MΩ ▪km | A | |
| 1.5 | 450/750 | 1 | 1/1.37 | 0.7 | 0.53 | 3.3 | 20 | 12.1 | 0.011 | 25 |
| 1.5 | 450/750 | 2 | 7/0.52 | 0.7 | 0.53 | 3.4 | 21.5 | 12.1 | 0.01 | 25 |
| 2.5 | 450/750 | 1 | 1/1.76 | 0.8 | 0.62 | 3.9 | 31.8 | 7.41 | 0.01 | 34 |
| 2.5 | 450/750 | 2 | 7/0.68 | 0.8 | 0.62 | 4.2 | 34.8 | 7.41 | 0.009 | 34 |
| 4 | 450/750 | 1 | 1/2.24 | 0.8 | 0.62 | 4.4 | 46.8 | 4.61 | 0.0085 | 44 |
| 4 | 450/750 | 2 | 7/0.85 | 0.8 | 0.62 | 4.8 | 50.3 | 4.61 | 0.0077 | 44 |
| 6 | 450/750 | 1 | 1/2.73 | 0.8 | 0.62 | 4.9 | 66.5 | 3.08 | 0.007 | 58 |
| 6 | 450/750 | 2 | 7/1.04 | 0.8 | 0.62 | 5.4 | 71 | 3.08 | 0.0065 | 58 |
| 10 | 450/750 | 2 | 7/1.33 | 1.0 | 0.80 | 6.8 | 116 | 1.83 | 0.0065 | 79 |
| 16 | 450/750 | 2 | 7/1.70 | 1.0 | 0.80 | 8 | 180 | 1.15 | 0.005 | 111 |
| 25 | 450/750 | 2 | 7/2.12 | 1.2 | 0.98 | 9.8 | 277 | 0.727 | 0.005 | 146 |
| 35 | 450/750 | 2 | 7/2.50 | 1.2 | 0.98 | 11 | 375 | 0.524 | 0.004 | 180 |
| 50 | 450/750 | 2 | 19/1.78 | 1.4 | 1.16 | 13 | 536 | 0.387 | 0.0045 | 282 |
| 70 | 450/750 | 2 | 19/2.12 | 1.4 | 1.16 | 15 | 706 | 0.268 | 0.0035 | 281 |
| 95 | 450/750 | 2 | 19/2.62 | 1.6 | 1.34 | 17 | 977 | 0.193 | 0.0035 | 344 |
| 120 | 450/750 | 2 | 19/2.98 | 1.6 | 1.34 | 19 | 1231 | 0.153 | 0.0032 | 397 |
| 150 | 450/750 | 2 | 30/2.62 | 1.8 | 1.52 | 21 | 1503 | 0.124 | 0.0032 | 456 |
| 185 | 450/750 | 2 | 37/2.62 | 2.0 | 1.70 | 23.5 | 1870 | 0.0991 | 0.0032 | 519 |
| 240 | 450/750 | 2 | 37/2.98 | 2.2 | 1.88 | 26.5 | 2457 | 0.754 | 0.0032 | 592 |
| 300 | 450/750 | 2 | 60/2.62 | 2.4 | 2.06 | 29.5 | 3053 | 0.0601 | 0.003 | 685 |
| 400 | 450/750 | 2 | 60/2.98 | 2.6 | 2.24 | 33.5 | 3948 | 0.047 | 0.0028 | 799 |
