KVV22 CU/PVC/STA/PVC Multi-core Control Cable
Application
Control cables are used for control, monitoring, and protection circuits with a rated voltage of Uo/U up to 450/750V, acting as a vital link between electrical devices in industrial and commercial settings, ensuring efficient signal and power transmission.
Flame-retardant cables are engineered to resist ignition and restrict flame spread, minimizing fire hazards and enhancing safety. They are well-suited for applications requiring high fire protection standards, including power stations, tunnels, skyscrapers, manufacturing plants, and densely populated facilities.
Fire-resistant control cables ensure stable power transmission under normal conditions and continue functioning for a specified duration after exposure to fire, preventing system failures. These cables are essential for critical infrastructure, emergency response systems, and environments where operational continuity is crucial during a fire, such as hospitals, subway networks, data centers, and emergency power stations.

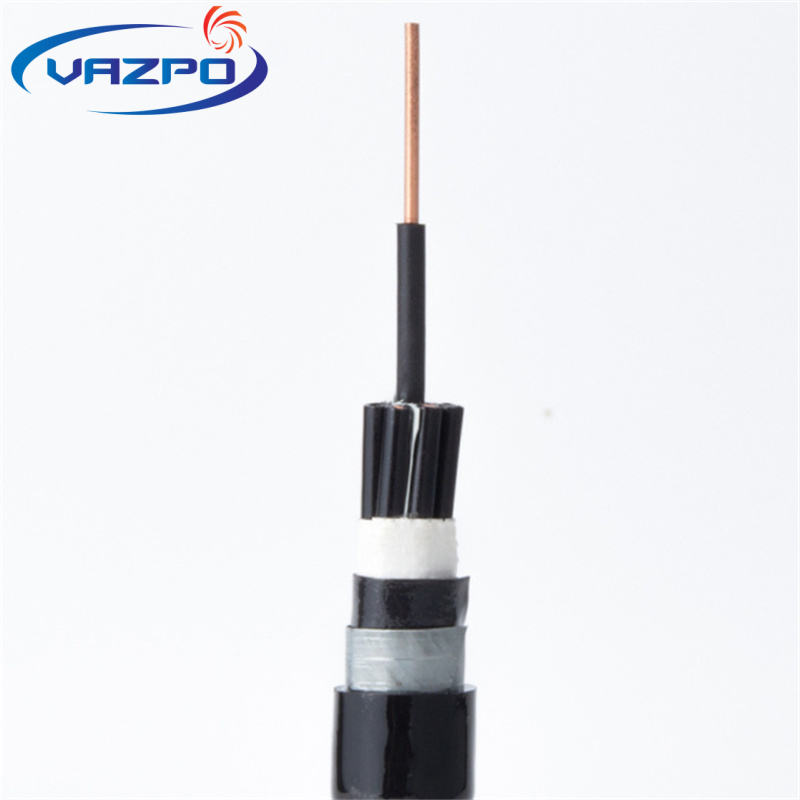

Structure
Conductor: solid copper or stranded copper
Insulation: PVC/PVC (XLPE)
Shield: copper tape shield
Sheath: PVC
Features
1. Product standard: IEC 60227
2. Certification: IEC CE RoHS
3. Rated voltage: 450/750V
4. Long term allowable working temperature for cableconductor is 70℃.
5. The cable shall be laid with the temperature no lessthan 0Cand its bending radius allowable as follows: Non-armored cable shall have a diameter no less than 6times as the outer diameter of the cable. Armored cable or cable with copper stripped screen shallhave a diameter no less than 12 times as the outer diameterof the cable. Non-armored cable shall have a diameter no less than 6times as the outer diameter of the cable.
Specification
| No. Cross-section of conductor | Insulation thickness | Conductor structure | Reference overall diameter of cable | Reference weight of cable | Max. D.C resistance of conductor at 20 ℃ | Min. insulation resistance at 70℃ |
| mm2 | mm | mm | mm | kg/km | Ω /km | MΩ /km |
| 10×0.75 | 0.6 | 1/0.97 | 15.6 | 351 | 24.5 | 0.012 |
| 10×1.0 | 0.6 | 1/1.13 | 16.2 | 392 | 18.1 | 0.011 |
| 10×1.5 | 0.7 | 1/1.37 | 18.1 | 494 | 12.1 | 0.011 |
| 10×2.5 | 0.8 | 1/1.76 | 20.9 | 683 | 7.41 | 0.01 |
| 10×4 | 0.8 | 1/2.24 | 22.8 | 878 | 4.61 | 0.0085 |
| 10×6 | 0.8 | 1/2.73 | 24.9 | 1126 | 3.08 | 0.007 |
| 10×10 | 1.0 | 7/1.33 | 33.5 | 2144 | 1.83 | 0.0065 |
