Control Cable XLPE Insulated Multi-conductor
Application
Control cable is a flexible cable used for mobile service. Suitable for the connection of mechanical parts used in manufacturing, suitable for fixed installations where complex layouts requiring flexible cables are required.

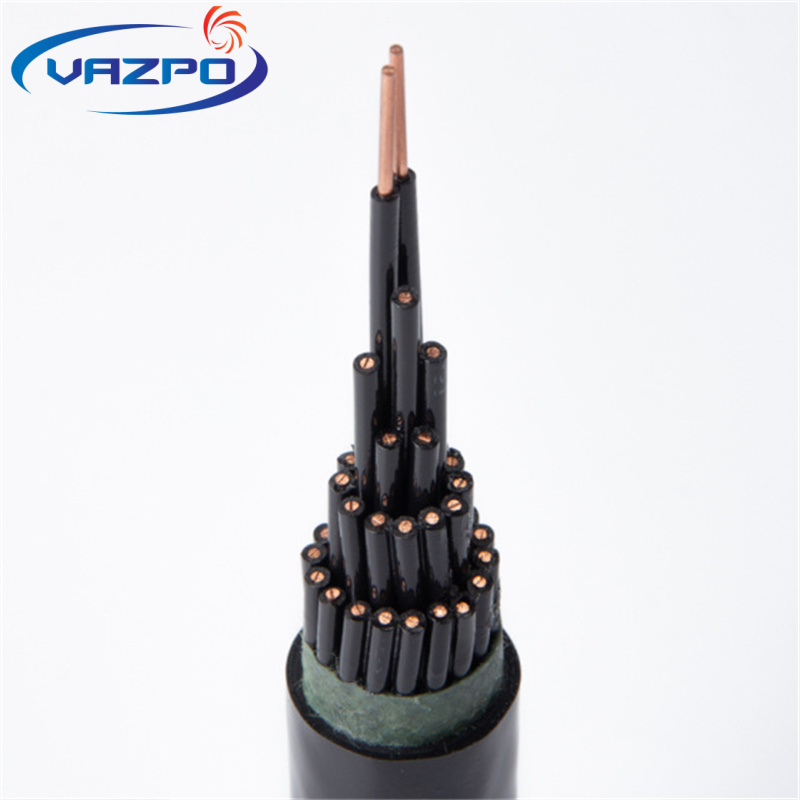

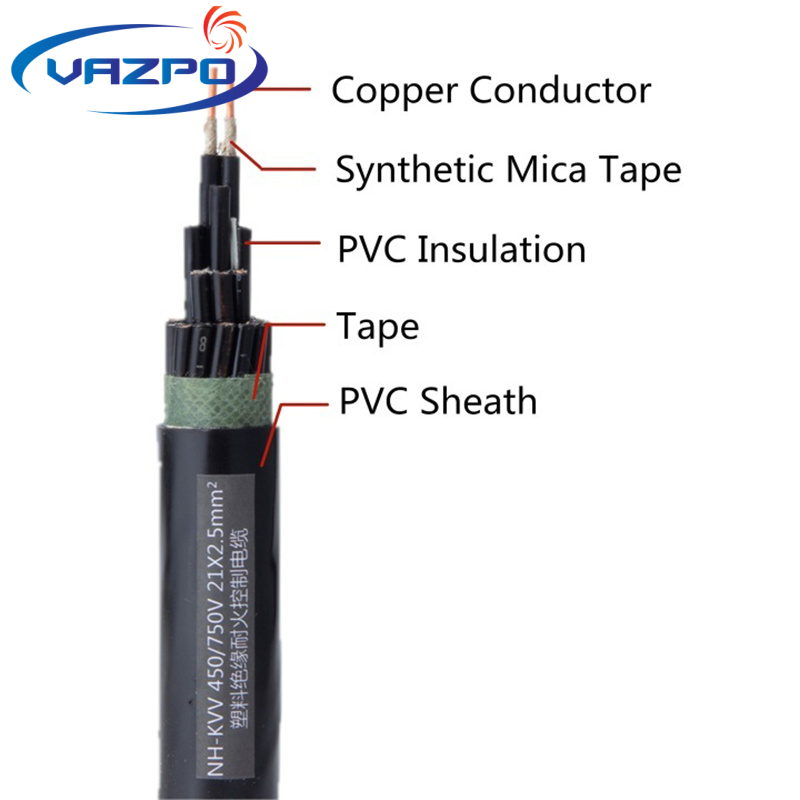

Structure
Conductor: solid copper or stranded copper
Insulation: PVC/PVC (XLPE)
Shield: copper tape shield
Sheath: PVC
Features
1. Product standard: IEC 60227
2. Certification: IEC CE RoHS
3. Rated voltage: 450/750V
4. Long term allowable working temperature for cableconductor is 70℃.
5. The cable shall be laid with the temperature no lessthan 0Cand its bending radius allowable as follows: Non-armored cable shall have a diameter no less than 6times as the outer diameter of the cable. Armored cable or cable with copper stripped screen shallhave a diameter no less than 12 times as the outer diameterof the cable. Non-armored cable shall have a diameter no less than 6times as the outer diameter of the cable.
Specification
| No. Cross-section of conductor | Kind of conductor | Conductor structure | Insulation Thickness | Max. overall diameter of cable | Reference weight of cable | Max. D.C resistance of conductor at 20 ℃ | Min. insulation resistance at 70℃ |
| mm2 | mm | mm | mm | kg/km | Ω /km | MΩ /km | |
| 24×0.75 | 1 | 1/0.97 | 0.6 | 16.7 | 380 | 24.5 | 0.012 |
| 24×0.75 | 2 | 7/0.37 | 0.6 | 17.6 | 408 | 24.5 | 0.014 |
| 24×1 | 1 | 1/1.13 | 0.6 | 17.7 | 457 | 18.1 | 0.011 |
| 24×1 | 2 | 7/0.43 | 0.6 | 18.6 | 490 | 18.1 | 0.013 |
| 24×1.5 | 1 | 1/1.37 | 0.7 | 20.9 | 652 | 12.1 | 0.011 |
| 24×1.5 | 2 | 7/0.52 | 0.7 | 21.9 | 691 | 12.1 | 0.010 |
| 24×2.5 | 1 | 1/1.76 | 0.8 | 24.5 | 971 | 7.41 | 0.010 |
| 24×2.5 | 2 | 7/0.68 | 0.8 | 26.1 | 1105 | 7.41 | 0.009 |
