Control Cable
01

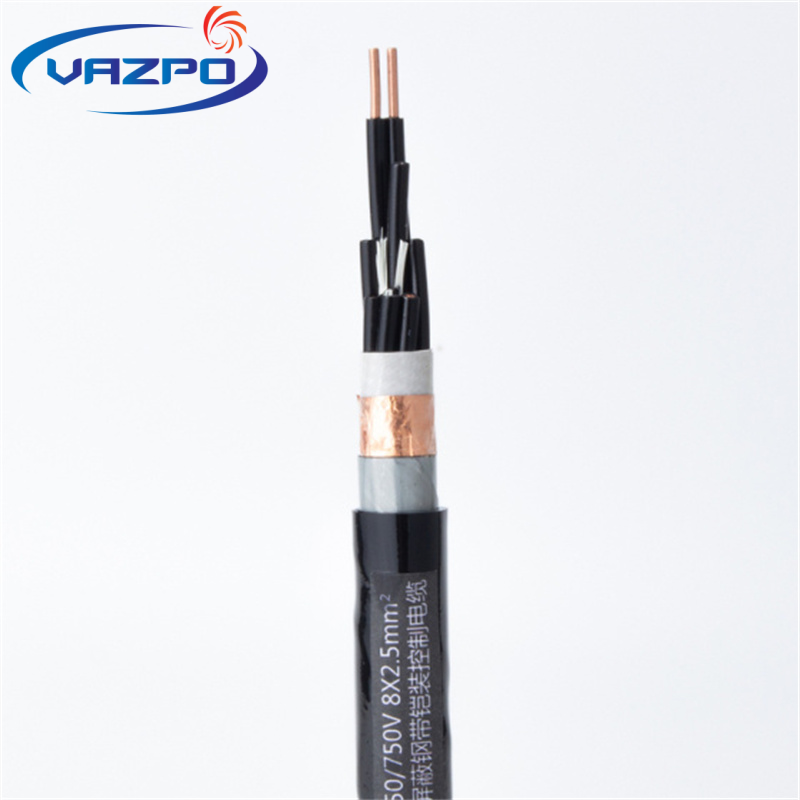

Control Cable Copper Tape Shielding
Application
Control cables are highly flexible and designed for use in mobile services, providing reliable connections between mechanical parts in various manufacturing processes. These cables are also well-suited for fixed installations, particularly in environments with complex or intricate layouts where standard rigid cables would be impractical. Their flexibility allows for easy routing and installation, making them ideal for use in machinery, automation systems, and other industrial applications that demand durable and adaptable cabling solutions. Additionally, they offer excellent resistance to mechanical stress, bending, and environmental factors, ensuring long-term performance in demanding conditions such as robotics, conveyors, production lines, and control panels.

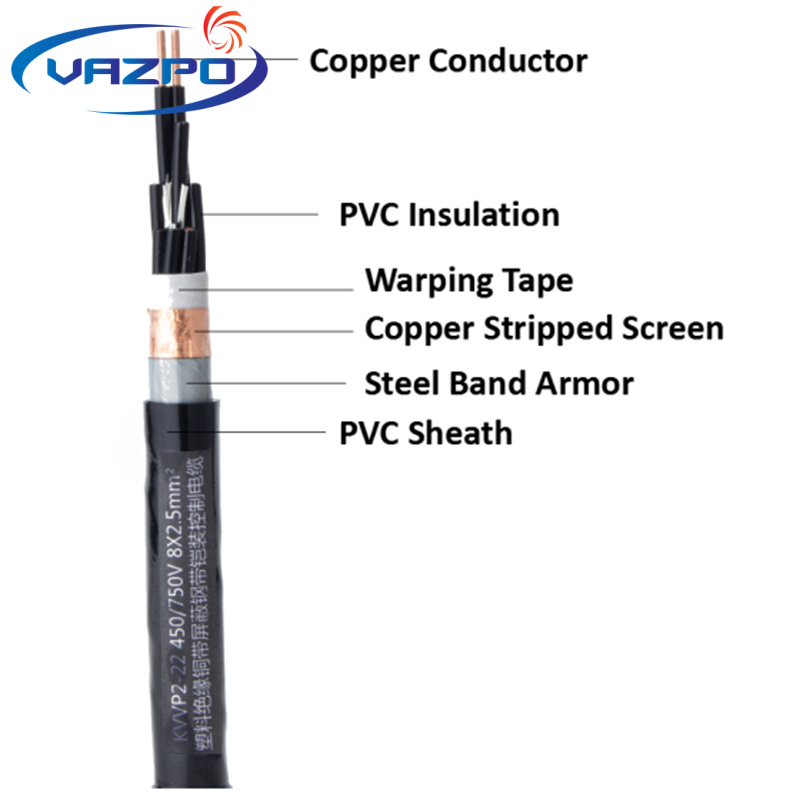

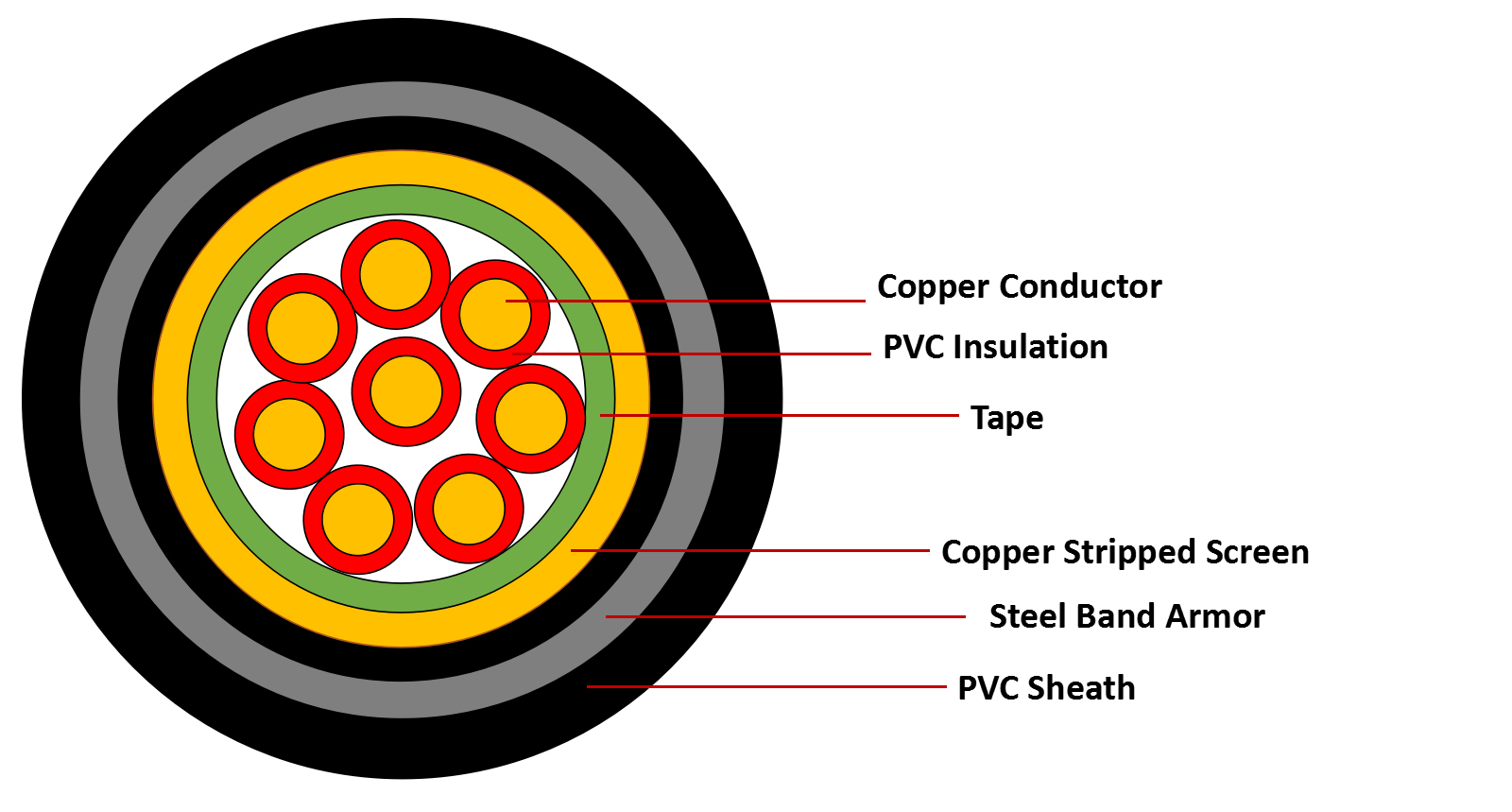

Structure
Conductor: solid copper or stranded copper
Insulation: PVC/PVC (XLPE)
Shield: copper tape shield
Sheath: PVC
Features
1. Product standard: IEC 60227
2. Certification: IEC CE RoHS
3. Rated voltage: 450/750V
4. Long term allowable working temperature for cableconductor is 70℃.
5. The cable shall be laid with the temperature no lessthan 0Cand its bending radius allowable as follows: Non-armored cable shall have a diameter no less than 6times as the outer diameter of the cable. Armored cable or cable with copper stripped screen shallhave a diameter no less than 12 times as the outer diameterof the cable. Non-armored cable shall have a diameter no less than 6times as the outer diameter of the cable.
Specification
| No. Cross-section of conductor | Insulation thickness | Conductor structure | Reference overall diameter of cable | Reference weight of cable | Max. D.C resistance of conductor at 20 ℃ | Min. insulation resistance at 70℃ |
| mm2 | mm | mm | mm | kg/km | Ω /km | MΩ /km |
| 8×0.75 | 0.6 | 1/0.97 | 15.4 | 360 | 24.5 | 0.012 |
| 8×1.0 | 0.6 | 1/1.13 | 16 | 396 | 18.1 | 0.011 |
| 8×1.5 | 0.7 | 1/1.37 | 17.5 | 486 | 12.1 | 0.011 |
| 8×2.5 | 0.8 | 1/1.76 | 19.5 | 632 | 7.41 | 0.01 |
| 8×4 | 0.8 | 1/2.24 | 21.5 | 813 | 4.61 | 0.0085 |
| 8×6 | 0.8 | 1/2.73 | 23.1 | 1020 | 3.08 | 0.007 |
| 8×10 | 1.0 | 7/1.33 | 28.8 | 1579 | 1.83 | 0.0065 |
