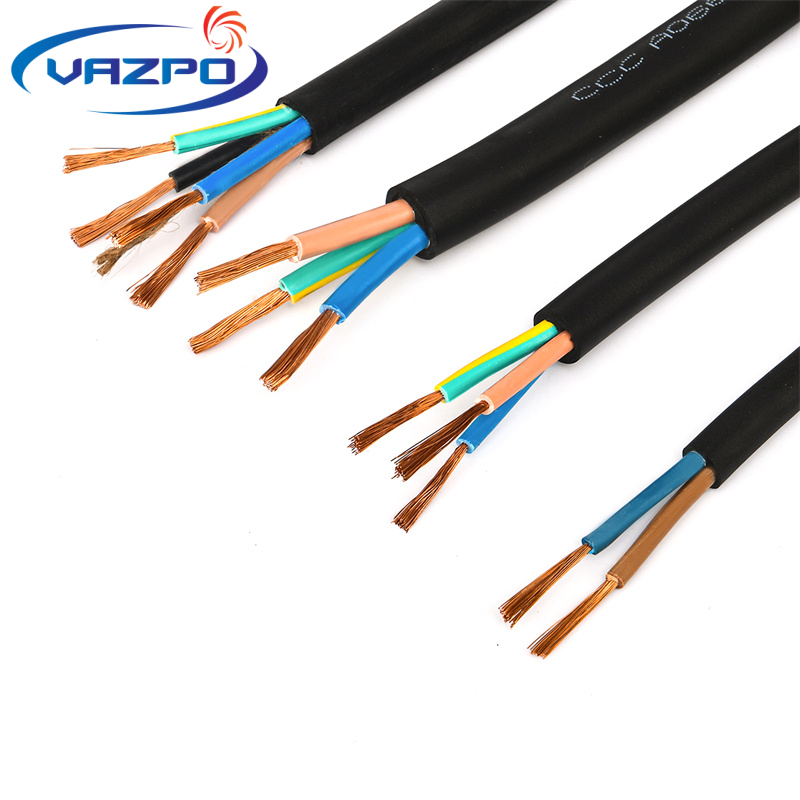

300/500V Flexible PVC Sheathed Electrical Cable
Application
Structure
Features
Specification
|
Model |
Factory Model |
Voltage level |
Product Name |
|
H07V-U |
BV |
450/750V |
Copper core PVC insulated cable |
|
H05V-U |
BV |
300/500V |
Copper core PVC insulated cable |
|
H05V-R |
BVR |
300/500V |
Copper core PVC insulated flexible cable |
|
H07V-R |
BVR |
450/750V |
Copper core PVC insulated flexible cable |
|
H07V-K |
RV |
450/750V |
Copper core PVC insulated PVC sheathed flat cable |
|
H05V-K |
RV |
300/500V |
Copper core PVC insulated flexible cable |
|

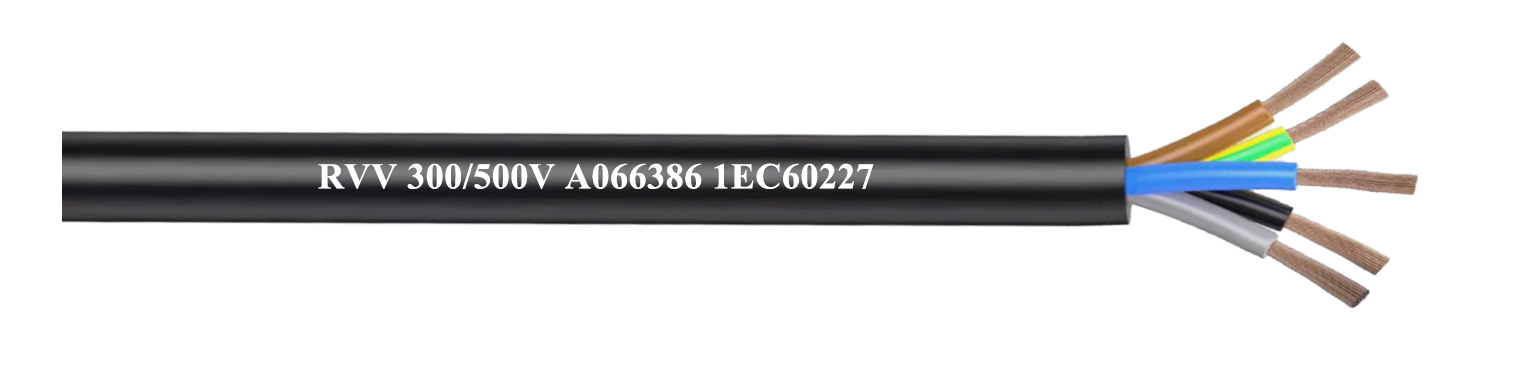

H05VV-F |
RVV |
300/500V |
Copper core PVC insulated PVC sheathed flexible round cable |
|
H03VV-F |
RVV |
300/300V |
Copper core PVC insulated PVC sheathed flexible round cable |
|
H05VVH2-F |
RVVB |
450/750V |
Copper core PVC insulated PVC sheathed flexible connection flat cable |
|
H03VVH2-F |
RVVB |
300/300V |
Copper core PVC insulated PVC sheathed flexible connection flat cable |
|
H05V-K |
RVS |
450/750V |
Copper core PVC insulated twisted flexible connection cable |
|
H05V-K |
RVB |
300/300V |
Copper core PVC insulated flexible flat cable for connection |
|
H05VV-F |
RVVP |
300/300V |
Copper core PVC insulated shielded flexible cable |
Flexible PVC Sheathed Cable
| No. Cross-section of conductor | Rated voltage | Conductor structure | Insulation thickness | Sheath thickness | Upper limit of O.D | Reference weight of cable | Max. D.C resistance of conductor at 20 ℃ | Min. insulation resistance at 70℃ | Approx. ampacity |
| mm2 | V | N/mm | mm | mm | mm | kg/km | Ω /km | MΩ /km | A |
| 3×0.75 | 300/500 | 42/0.15 | 0.6 | 0.8 | 8 | 70 | 26 | 0.011 | 9.5 |
| 3×1 | 300/500 | 32/0.2 | 0.6 | 0.8 | 8.4 | 81 | 19.5 | 0.01 | 11.7 |
| 3×1.5 | 300/500 | 48/0.2 | 0.7 | 0.9 | 9.8 | 115 | 13.3 | 0.01 | 12.7 |
| 3×2.5 | 300/500 | 77/0.2 | 0.8 | 1.1 | 12 | 170 | 7.98 | 0.009 | 21 |
| 3×0.5 | 300/300 | 28/0.15 | 0.5 | 0.6 | 6.2 | 45 | 39 | 0.012 | 7.4 |
| 3×0.75 | 300/300 | 42/0.15 | 0.5 | 0.6 | 6.8 | 58 | 26 | 0.01 | 9.5 |
