EV Electric Charging Cable Manufacturer
Application
The EV charging cable is an essential component that connects electric vehicles (EVs) to charging stations (charging piles), providing the necessary power for charging the vehicle’s battery. This cable supports the growing adoption of electric vehicles by ensuring efficient, fast, and safe charging at various locations including residential, commercial, and public charging stations. It is designed to work with both AC (alternating current) and DC (direct current) charging systems, making it compatible with a wide range of electric vehicles. Its flexibility and durability make it suitable for use in both indoor and outdoor environments, ensuring charging is possible regardless of weather conditions.

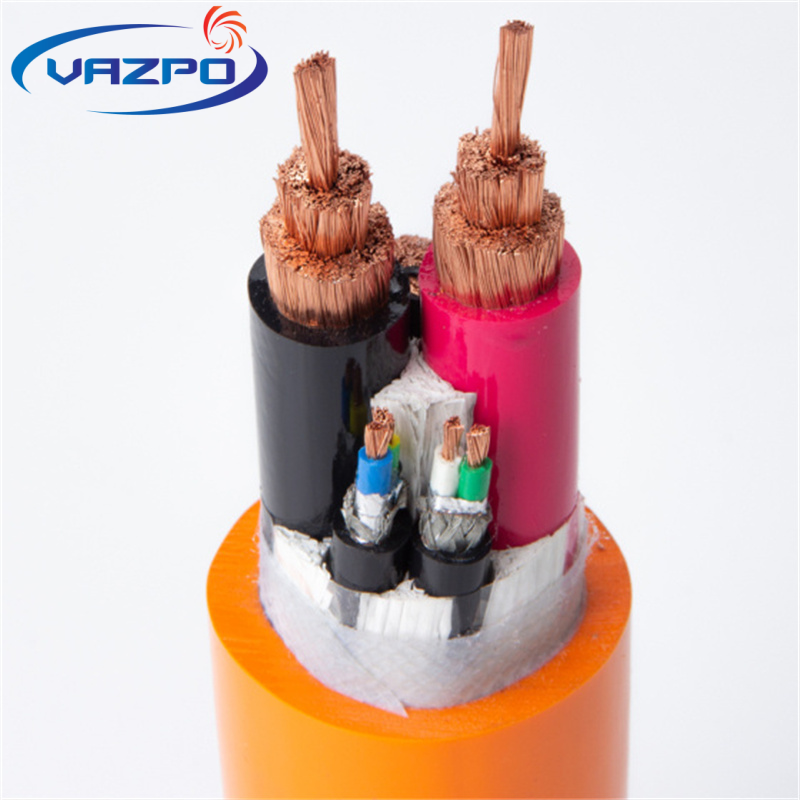

Structure
Conductor: Copper
Insulation: TPE
Sheath: TPE
Features
1. Model: EV-SS
2. Rated voltage: 450/750V、0.6/1kV
3. Operating temperature range: -40℃ ~ +90℃
4. Certification: CQC/Dekai
5. Waterproof and Dustproof: This cable is fully sealed to prevent water and dust infiltration, making it ideal for use in outdoor environments and harsh weather conditions without compromising performance.
6. High Flexibility: With its soft and flexible design, the cable can be easily coiled, stored, and installed, making it perfect for use in both residential and commercial spaces with minimal hassle.
7. Enhanced Safety: Designed with multiple layers of insulation and protection, the cable prevents overheating, electrical short circuits, and potential fire hazards, ensuring safe and reliable charging.
8. Durable Sheath: The TPE sheath protects the cable from wear and physical damage, offering added protection against abrasions, impacts, and exposure to chemicals or oils commonly found in industrial environments.
Specification
| Model | Nominal Cross-Sectional Area | Conductor | Insulation | Core | Inner Sheath | Braid | Outter Sheath | ||||||||
| Diameter of the Thinnest Point | Lay Direction | Core pitch ratio no more than | The Minimum Average Thickness | The Thinnest Point | Maximum diameter of single wire | The Minimum Density | The Minimum Average Thickness | The Minimum Average Thickness | The Thinnest Point | Maximum diameter of single wire | The Minimum Density | The Minimum Average Thickness | The Thinnest Point | ||
| mm | mm | / | / | mm | mm | mm | % | mm | mm | mm | mm | % | mm | mm | |
| EVDC-RSSPS | 2×70+1×25+2×4+4×1.5 | 37×59/0.20 | 0.31 | 6 | 0.3 | 1.40 | 1.16 | — | 16.0 | 0.60 | 0.41 | 0 | 80 | 4.4 | 3.64 |
