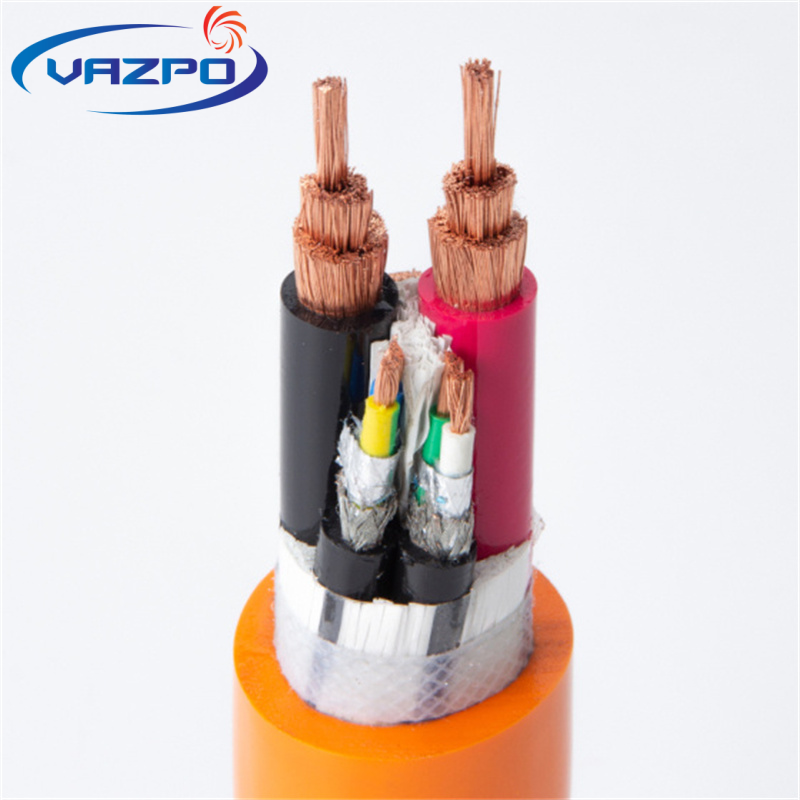

EV Charging Cable
01
EV Battery Charging Cable for Cars
Application
EV charging cables are essential components used to connect charging stations (charging piles) and electric vehicles. These cables provide a reliable and efficient power connection to charge electric vehicles, making them a critical part of the EV charging infrastructure. Widely used in various environments, they are designed for home, public, and commercial charging stations. EV charging cables support both AC and DC charging systems, depending on the vehicle and charging station type. They are perfect for indoor and outdoor use, providing fast, secure charging in a variety of weather conditions. As electric vehicles become more widespread, these cables are key to ensuring the growth and development of the EV charging network, making them indispensable for a cleaner and more sustainable future.

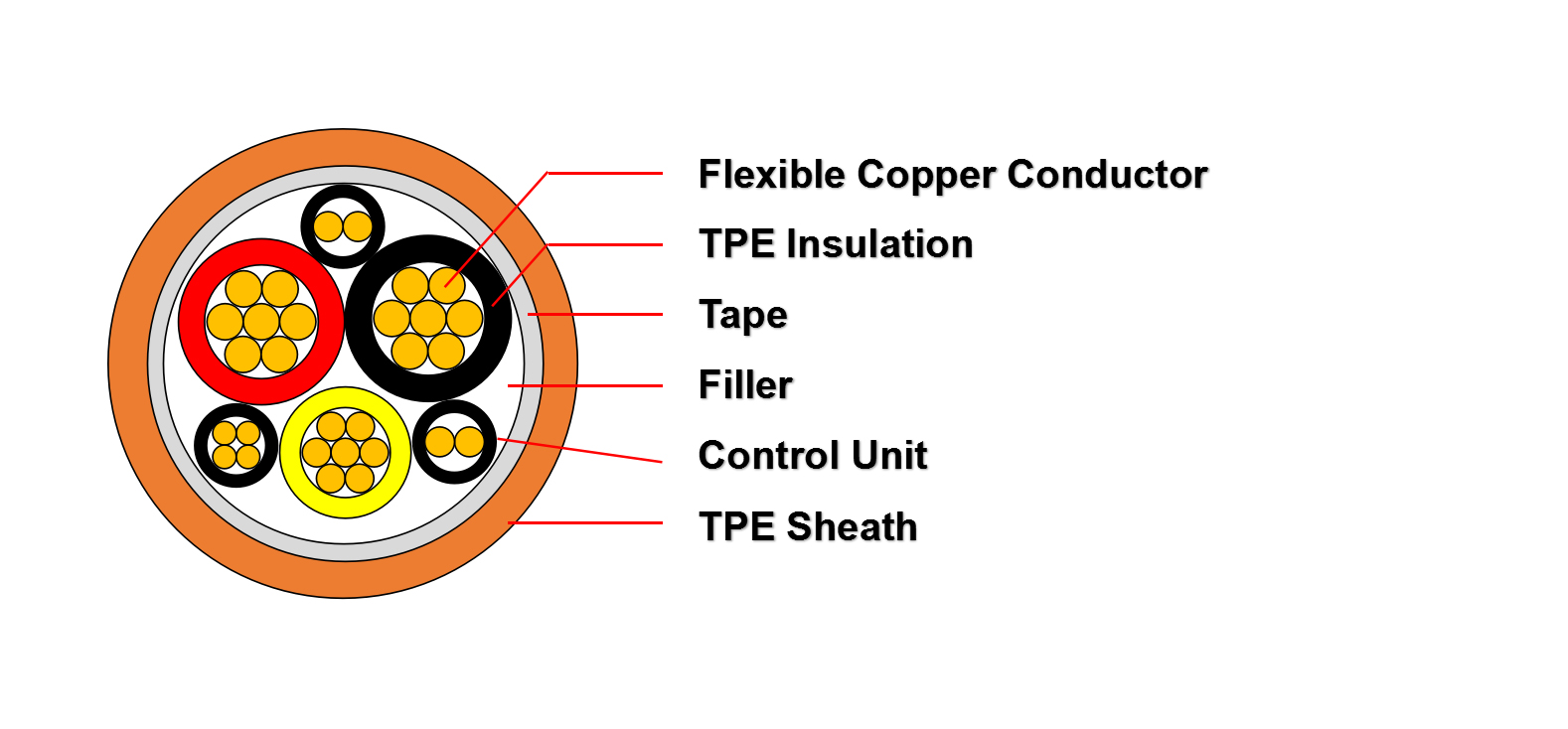

Structure
Conductor: Copper
Insulation: TPE
Sheath: TPE
Features
1. Model: EVDC-RSSPS
2. Rated voltage: 450/750V、0.6/1kV
3. Operating temperature range: -40℃ ~ +90℃
4. Certification: CQC/Dekai
5. Fast Charging Support: Optimized for quick charging, reducing vehicle downtime and ensuring that drivers are quickly back on the road.
6. Eco-Friendly Design: Manufactured with environmentally friendly materials that are both recyclable and safe for long-term use, contributing to sustainability in the electric vehicle industry.
7. Enhanced Durability: Designed for frequent use with a robust construction that resists wear and tear from daily handling, making it ideal for both home and commercial charging stations.
8. Flexible Handling: The cable remains flexible even in cold temperatures, making it easy to coil and store, enhancing user convenience.
Specification
| Model | Nominal Cross-Sectional Area | Conductor | Insulation | Core | Inner Sheath | Braid | Outter Sheath | ||||||||
| Diameter of the Thinnest Point | Lay Direction | Core pitch ratio no more than | The Minimum Average Thickness | The Thinnest Point | Maximum diameter of single wire | The Minimum Density | The Minimum Average Thickness | The Minimum Average Thickness | The Thinnest Point | Maximum diameter of single wire | The Minimum Density | The Minimum Average Thickness | The Thinnest Point | ||
| mm | mm | / | / | mm | mm | mm | % | mm | mm | mm | mm | % | mm | mm | |
| EV-SS | 3×16+2×4+4×1.5p | 7×18/0.40 | 0.41 | 5 | 1.21 | 1 | 0.8 | — | 16 | 0.6 | 0.41 | 0.2 | 80 | 2.7 | 2.195 |
