1000v 6mm 10mm 16mm Cable Solar Panel Wire
Application

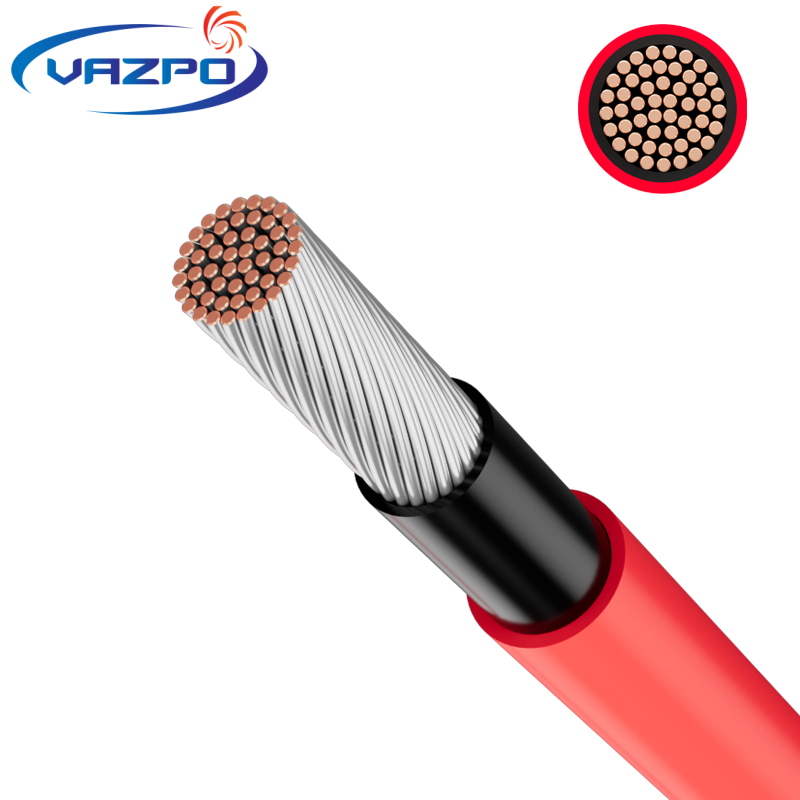

Structure
Characteristic
|
Rated voltage |
DC 1.5KV / AC 0.6/1KV |
|
Test voltage |
6000V |
|
Operating temperature |
-40℃~125℃ |
|
Short circuit temperature |
280℃ 5s |
|
Bending radius |
D＜8mm 4D; D≥8mm 6D |
|
Service life |
≥25 Years |
|
Standard |
TUV 2PfG 1169/08.07 |
|
Certification |
TUV /EN/UL/CQC |
Features

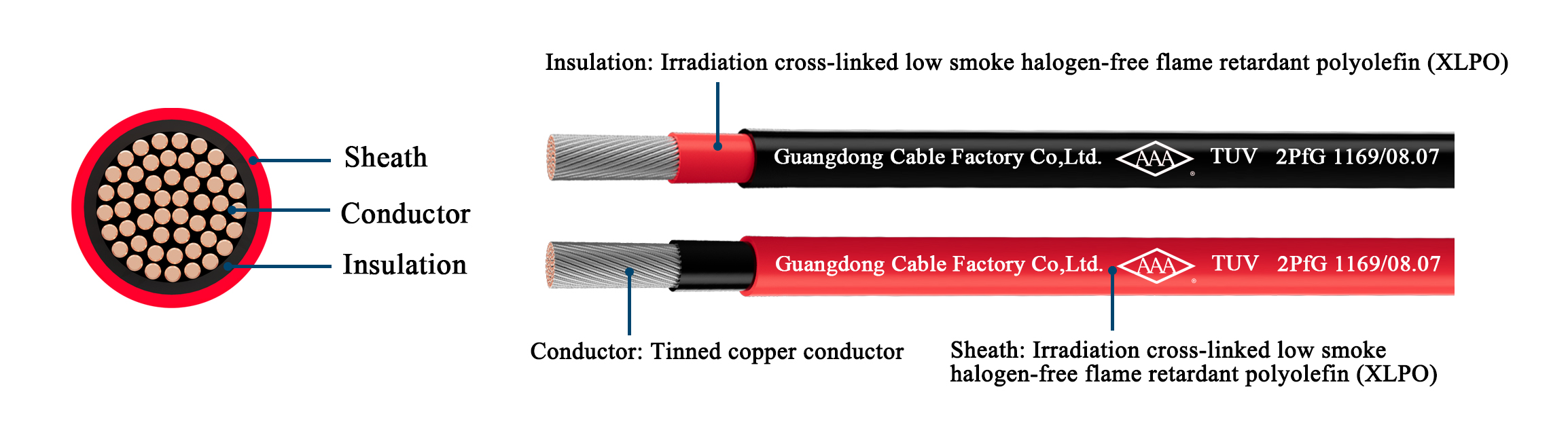

1. The Conductor Is Tinned Copper Conductor
① Shields copper wires from oxidation in harsh environments.
② Boosts welding reliability at conductor terminals.
2. The Conductor Is Soft Copper Conductor
① Fine single wires enhance flexibility without sacrificing load capacity.
② Ideal for solar panels adjusting to sunlight angles.
③ Quick and easy to install.
3. The Insulation and Sheath Are Made of Low-smoke Halogen-free Flame-retardant Material with a Temperature Resistance of 125℃
① Handles high heat with ease.
② Non-toxic, flame-retardant protection.
4. Insulation and Sheath Materials Have Very Good Heat Shrinkage Function
① Tight fit due to excellent heat shrinkage.
5. The Insulation and Sheath Materials Are Resistant to Low Temperatures
① Stable performance in freezing -40℃ or scorching 125℃.
② Durable against brittleness.
6. The Cable Has Excellent Acid and Alkali Water Resistance
① Water exposure won’t compromise welding quality.
② Holds up under prolonged acid/alkali exposure.
7. Excellent UV Resistance
① 25-year lifespan under sunlight.
② Minimal elongation at break (≤50%).
Certification
Packing

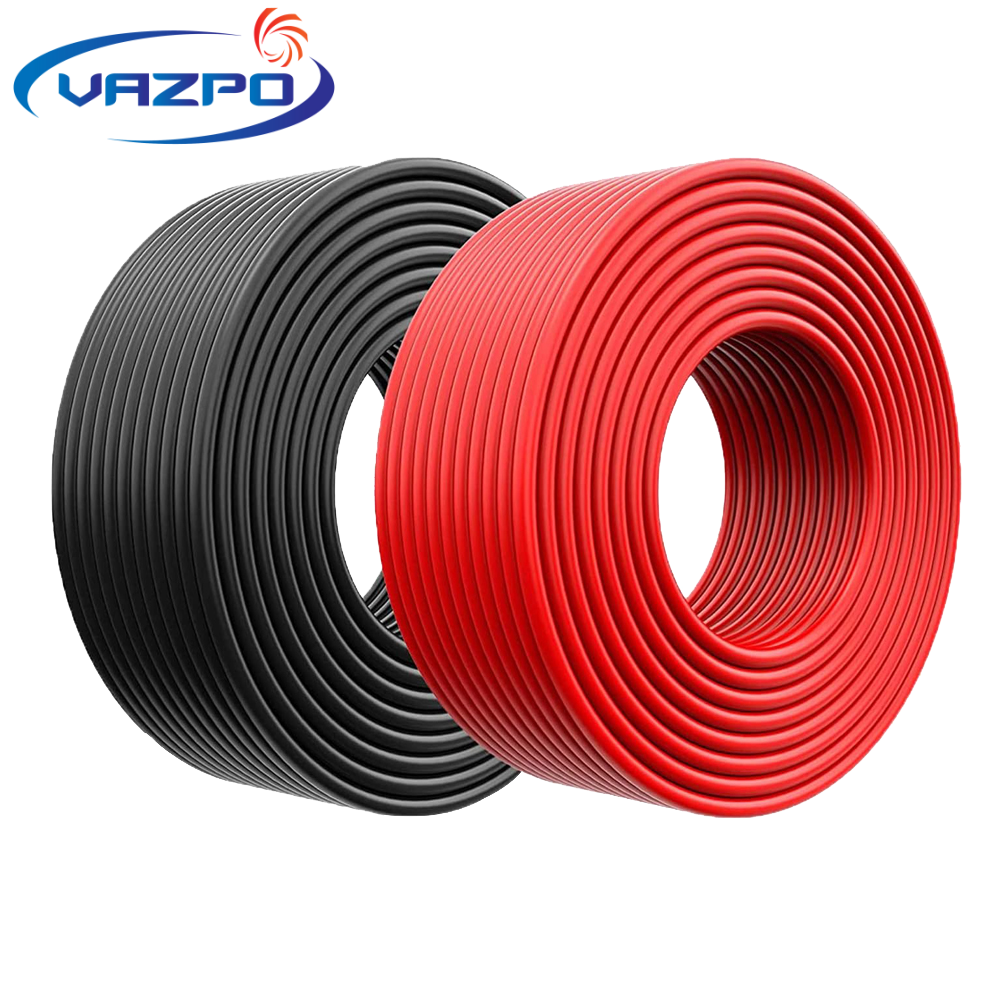

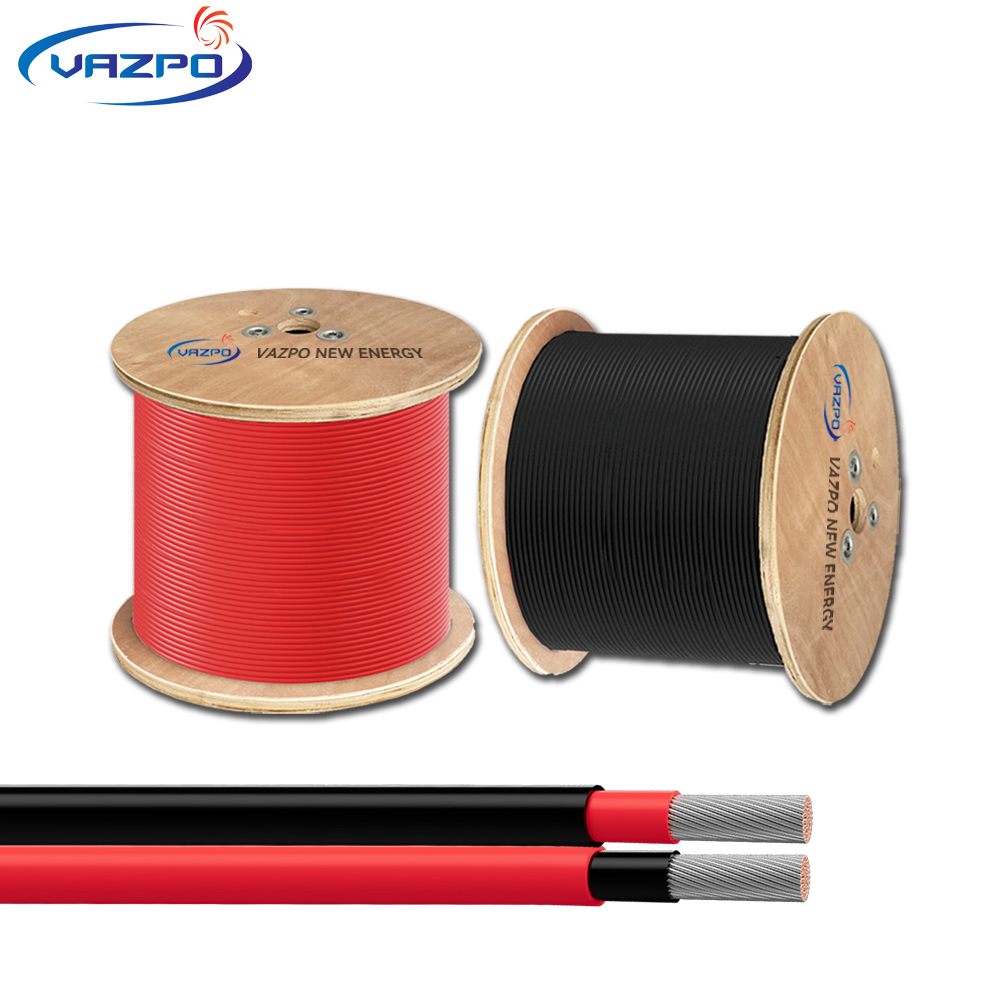

The regular packaging includes rolls of 100 meters, 200 meters, 500 meters, 1000 meters, and 3000 meters. Customers can choose the most suitable packaging size based on their project requirements.
Specification
| Solar Cable Specification (PV1-F/H1Z2Z2-K/PV-YJYJ) | |||||||
| Specification | Diameter | Resistance of Conductor |
Insulation Thickness |
Sheath Thickness |
Outer Diameter |
Weight | Carrying Capacity |
| mm | mm | mm | kg/km | A | |||
| 1X1.5 | 0.20 | 13.700 | 0.7 | 0.8 | 4.75 | 37.4 | 33 |
| 1x2.5 | 0.20 | 8.210 | 0.7 | 0.8 | 5.18 | 49 | 42 |
| 1x4 | 0.30 | 5.090 | 0.7 | 0.8 | 5.74 | 67.4 | 56 |
| 1x6 | 0.30 | 3.390 | 0.7 | 0.8 | 6.53 | 91.7 | 77 |
| 1x10.0 | 0.40 | 1.950 | 0.7 | 0.8 | 7.66 | 142.6 | 103 |
| 1x16.0 | 0.40 | 1.240 | 0.7 | 0.9 | 9.03 | 205.9 | 140 |
| 1x25.0 | 0.40 | 0.795 | 0.9 | 1.0 | 11.03 | 314.2 | 171 |
| 1x35.0 | 0.40 | 0.565 | 0.9 | 1.1 | 12.37 | 412.6 | 212 |
| 1x50.0 | 0.40 | 0.393 | 1.0 | 1.2 | 14.98 | 586.6 | 269 |
| 1x70.0 | 0.50 | 0.277 | 1.1 | 1.2 | 16.49 | 783.7 | 335 |
| 1x95.0 | 0.50 | 0.210 | 1.1 | 1.3 | 18.48 | 1020.6 | 392 |
| 1x120.0 | 0.50 | 0.164 | 1.2 | 1.3 | 20.50 | 1294.3 | 444 |
| 1x150.0 | 0.50 | 0.132 | 1.4 | 1.4 | 22.97 | 1627 | 503 |
