Solar Connector
01

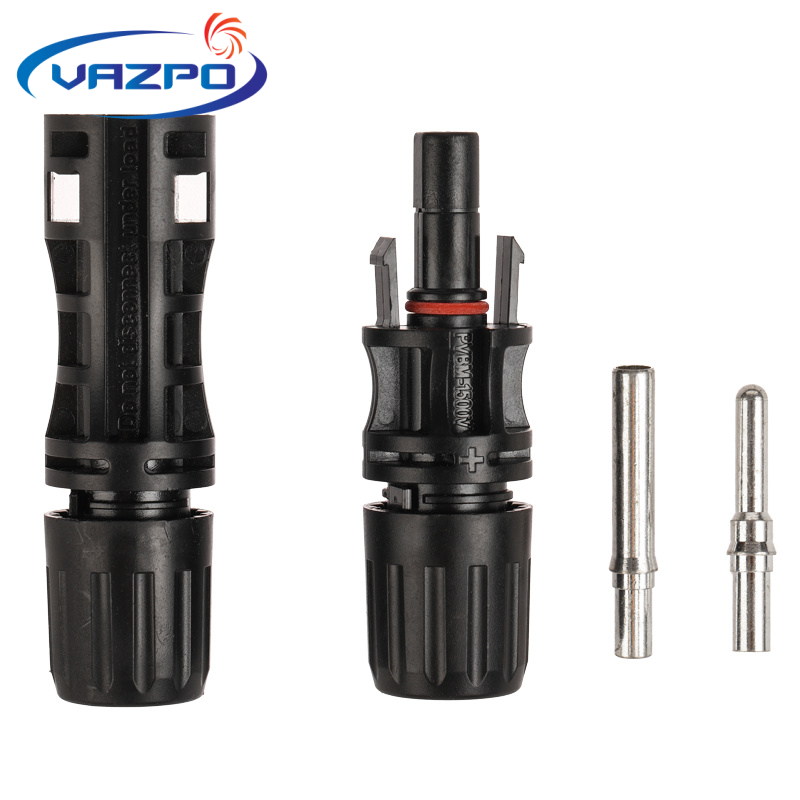

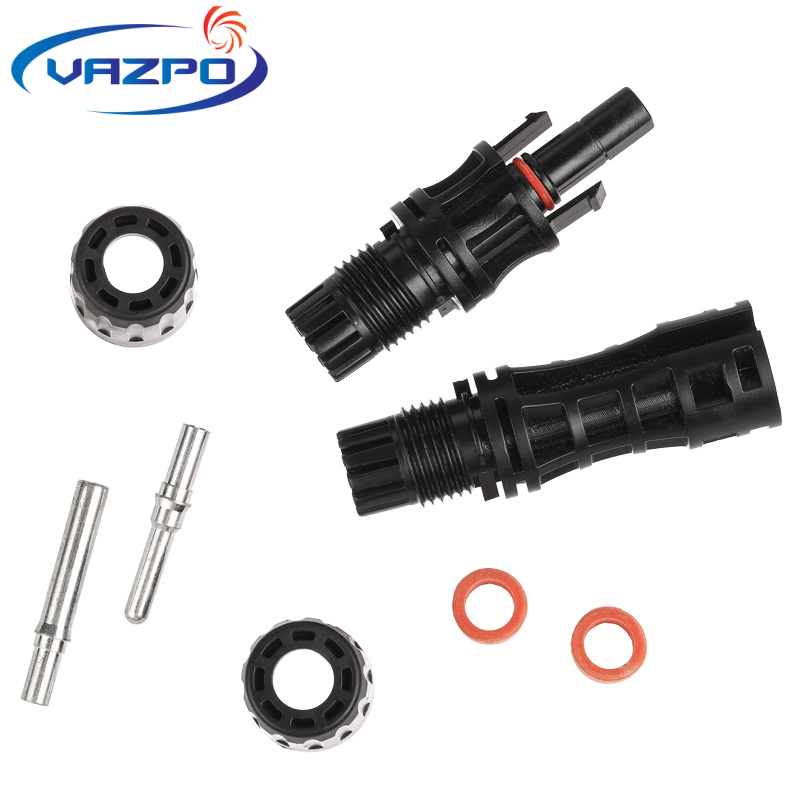

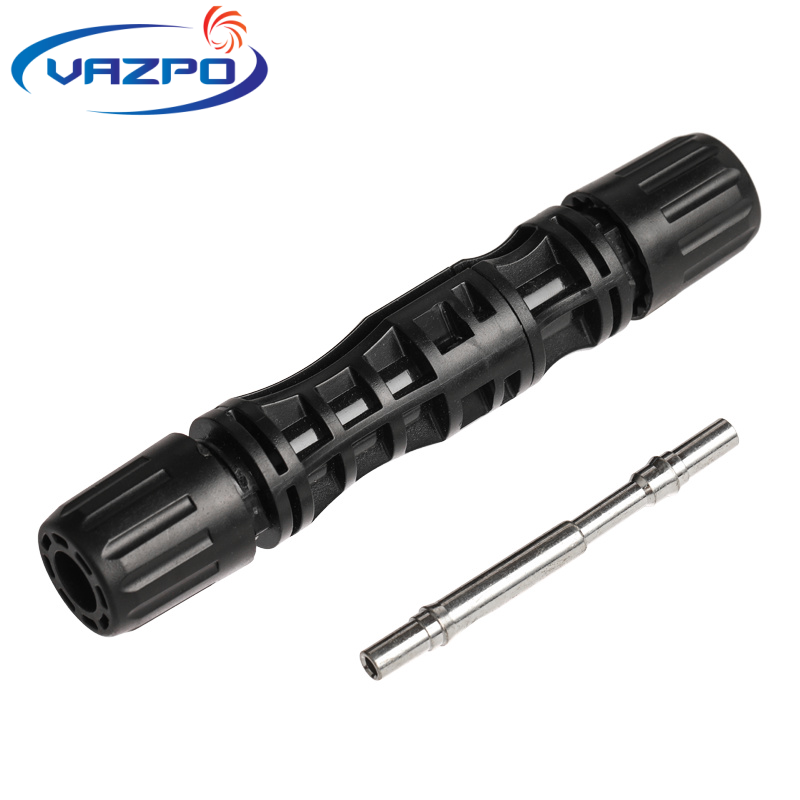

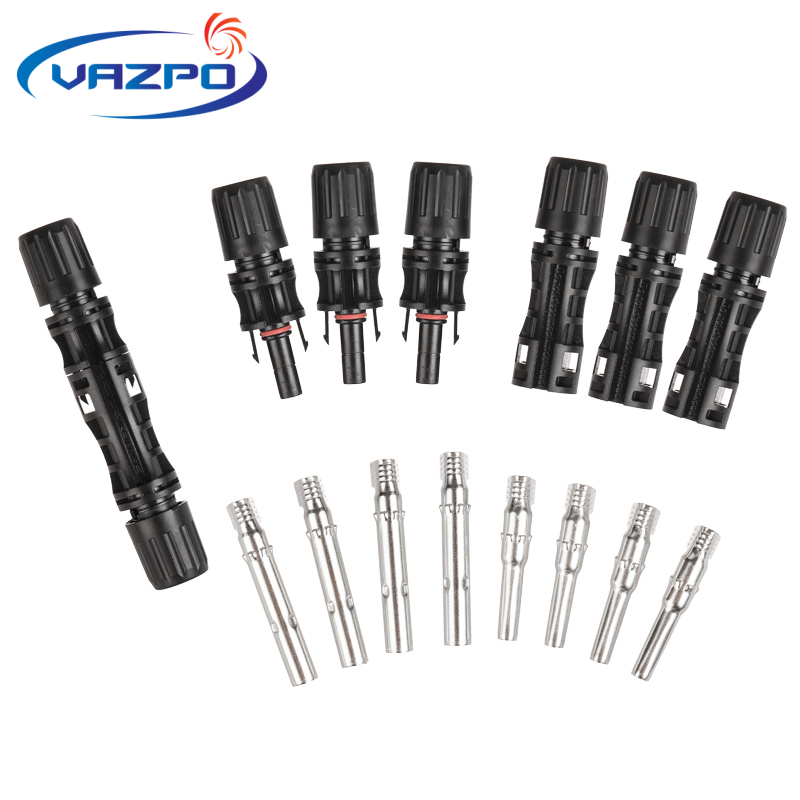

TUV IP68 Waterproof Solar Connectors
Application
Solar connectors play a critical role in photovoltaic (PV) power generation systems, ensuring efficient and secure electrical connections between essential components. These connectors are widely used in:
Solar power stations: Connecting solar panels, combiner boxes, and inverters.
Residential & commercial solar systems: Providing a secure link between PV modules and power converters.
Industrial & utility-scale PV farms: Enabling high-performance energy transmission.
Off-grid & hybrid solar installations: Ensuring reliable power flow in standalone systems.
By delivering low contact resistance, high conductivity, and robust weatherproofing, these connectors help maximize energy efficiency and long-term system performance.
Features
1. Rated voltage: 1500V DC
2. Contact material: tinned copper
3. Rated current: 30A
4. Standard: IEC 62852:2014
5. Protection level: IP68
6. Contact resistance: ≤0.3mΩ
7. Ambient temperature: -40℃-+125℃
8. Cable cross-sectional area: 2.5/4/6mm2
9. Insulation material: PPO
10. Certification: TUV/CE
Advantage
1. Superior Durability : Designed for 25+ years of stable performance in solar applications.
2. Universal Compatibility: Works with over 2,000+ PV connectors, making it easy to integrate into any system.
3. High Efficiency & Low Loss:≤0.3mΩ contact resistance ensures minimal power loss.
4. 100% Weatherproof: IP68 protection, UV resistance, and heat endurance allow installation in harsh outdoor environments.
5. Quick & Secure Installation: Snap-in locking mechanism prevents accidental disconnection, ensuring safety and reliability.
6. High Voltage & Current Handling: Rated for 1500V DC and 30A, maximizing the performance of solar power systems.
7. TUV & CE Certified: Ensuring compliance with international safety and quality standards.
