PV 1500DC TCA Solar Cable

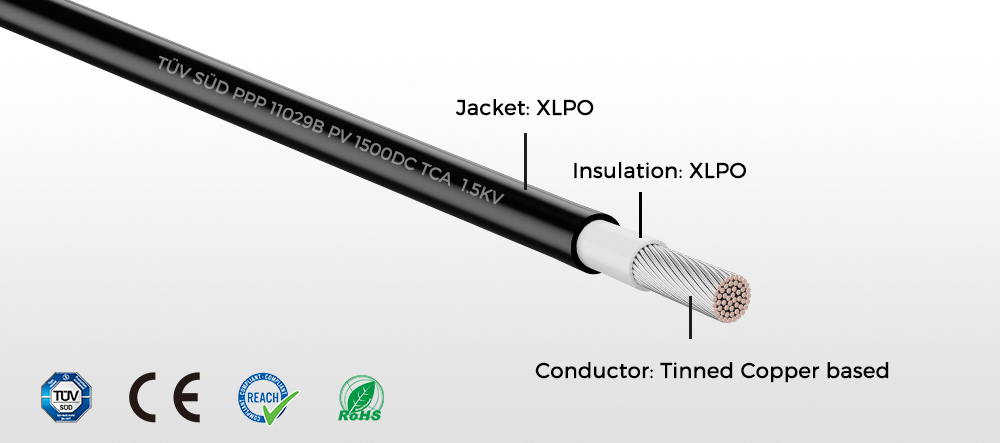

Structure
Conductor: Tinned copper based
Copper Content: 60%
Insulation: Low-smoke, halogen-free, flame-retardant irradiated polyolefin
Outer Sheath: Thickened low-smoke, halogen-free, flame-retardant irradiated polyolefin

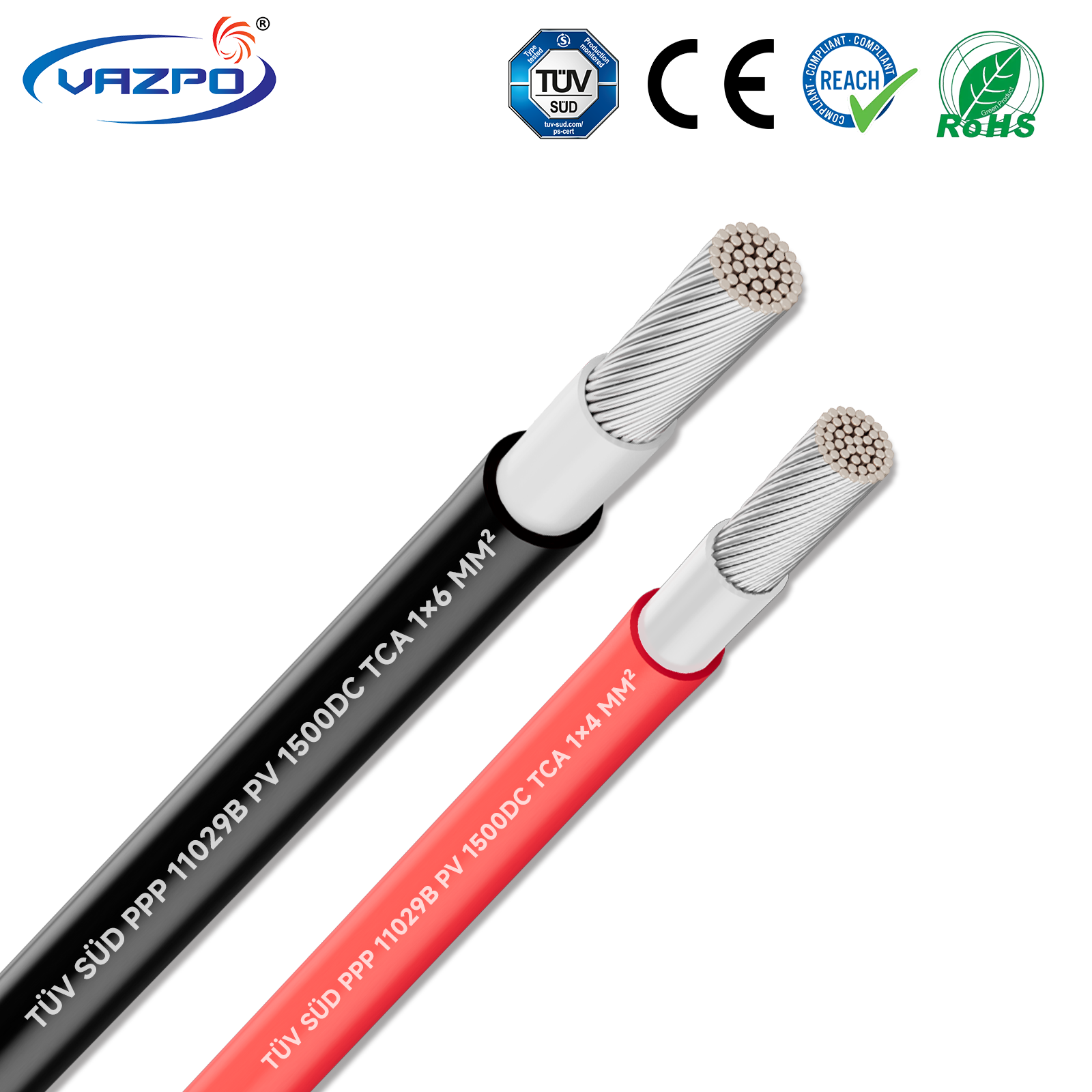

Sheath Color: Black/Red
Special Technology: Electron beam cross-linked
Characteristic
|
Model |
PV 1500DC (TCA) |
|
Rated voltage |
DC 1500V |
|
Test voltage |
6000V |
|
Operating temperature |
-40℃~90℃ |
|
Short circuit temperature |
280℃ 5s |
|
Bending radius |
D＜8mm 4D; D≥8mm 6D |
|
Service life |
≥25 Years |
|
Standard |
PPP 11029B:2024(TUV)
|
|
Certification |
TUV/CE |
Why EPCs & Distributors Choose Tinned Copper Based Solar Cable?
- Large-scale PV Project Case Study
For this 70 MW PV project, 700,000 meters of VAZPO 1×6mm² reinforced PV cable were installed. The product demonstrated stable and reliable performance while helping to achieve a total cost saving of approximately $120,000, fully validating its value in large-scale PV power plants.
- Quadruple Protective Structure
VAZPO reinforced PV cables feature a "4 level protection" design—comprising a tinned conductor, thickened insulation, a thickened sheath, and an enhanced outer protective layer—to deliver superior mechanical strength, durability, and long-term stability in harsh PV operating environments.
- Cost Reduction
Compared to conventional PV cables, VAZPO reinforced PV cables help customers reduce overall project costs by 20%, thanks to their optimized structural design, exceptional durability, and reduced need for ongoing maintenance.
Certification
Tinned copper based solar cables are TÜV and CE certified and manufactured in full compliance with international standards. Each batch is tested before shipment to ensure consistent quality and smooth project approval.
Production Capability
With over 10 years of experience, our factory operates 12 Solar cable lines and 7 irradiation cross-linking lines, running at up to 130 m/min. Standardized processes and strict quality control ensure stable supply and reliable delivery for large-scale and multi-site solar projects.
FAQ
Specification
| Corss | Construction(n/mm) | DIA. | Resistance | Insulation | Sheath |
| Section(mm2） | (mm) | of Conductor(Ω/km) | Thickness(mm) | Thickness(mm) | |
| 1x4 | 64/0.31 | 2.86 | 5.090 | 1.1 | 0.8 |
| 1x6 | 96/0.31 | 3.51 | 3.390 | 1.1 | 0.8 |
| 1x10 | 95/0.41 | 4.61 | 1.950 | 1.1 | 0.8 |
| 1x16 | 150/0.41 | 5.79 | 1.240 | 1.1 | 0.9 |
| 1x25 | 231/0.41 | 7.19 | 0.795 | 1.3 | 1.0 |
| 1x35 | 329/0.41 | 8.58 | 0.565 | 1.3 | 1.1 |
| 1x50 | 469/0.41 | 10.25 | 0.393 | 1.3 | 1.2 |
-
Q1: Is tinned copper based solar cable as good as tinned copper PV cable?
-
Q2: How much cost can tinned copper based solar cable save?
-
Q3: Is it safe, certified, and suitable for harsh outdoor environments?
-
Q4: Will using tinned copper based affect solar system efficiency?
-
Q5: Is it suitable for global projects?
A: Yes. It has been successfully used in the Middle East, Southeast Asia, Africa, and other regions worldwide.
