How to Choose Between 4mm and 6mm Solar Cable?

When building a solar power system, every part must be chosen with care. The solar cable is one part that needs special attention. Many people do not realize how important the cable size is for their system's performance and safety. You will probably need to choose between 4mm and 6mm Solar Cable. The main difference is simple: a 6mm cable is thicker than a 4mm cable. This extra thickness lets the 6mm cable carry more electrical power. It also loses less energy when electricity has to travel a long way. The 4mm cable works well for smaller systems or very short distances. Picking the wrong size will make your system work poorly. In bad situations, it can create a safety danger. Knowing exactly what your system needs is the most important first step.

Key Takeaways

• Use a 6mm solar cable for big systems or long wire runs. It carries more power and cuts down on wasted energy.
• A 4mm Solar Cable is good for small systems with short distances. It costs less money and is easier to put in.
• Always pick your cable based on your system's total power and how long the cable needs to be. This is the only way to be safe and get the best performance.

Understanding Solar cable

Definition and Purpose of Solar cable

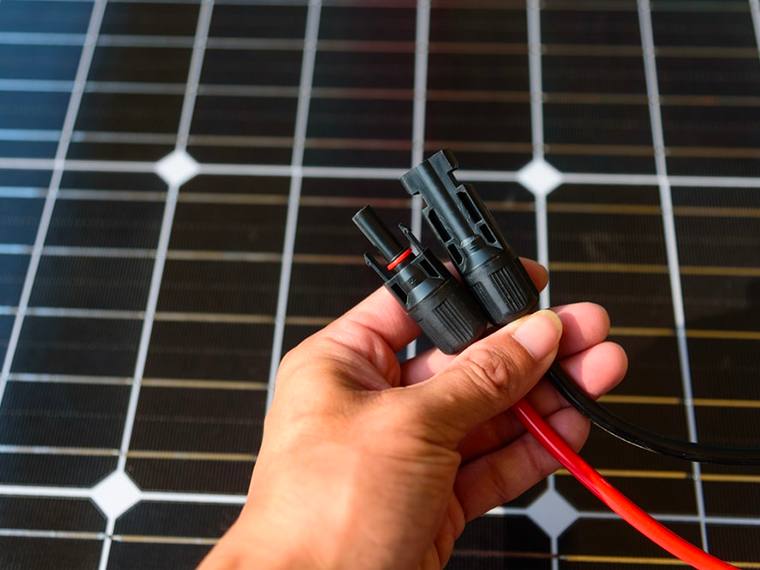

A solar cable is a special wire made just for solar power systems. Its main job is to connect your solar panels to the inverter. This connection lets the direct current (DC) electricity from the panels flow to the inverter to be used. You cannot use normal electrical wires for this job. Solar cable are built to handle tough outdoor conditions for many years. They are made with materials that fight damage from sunlight, high heat, cold, and wet weather. This special building makes them reliable and long-lasting.

Why can't you use a normal cable? Solar power systems have special needs. The DC electricity they carry needs cable with better insulation and specific safety features. Whether you use a 4mm or a 6mm cable, you must be sure it is approved for solar use. Using the right cable is a basic need for a system that is safe and works correctly.

The Importance of Cable Size in Solar Installations

The cable’s cross-sectional area, measured in square millimeters (mm ), plays a crucial role in electrical performance. It determines both the current-carrying capacity and the voltage drop over distance. A thinner cable, such as 4mm , offers higher resistance, which is acceptable for small systems or short wiring runs. However, in high-power applications or long-distance installations, this increased resistance can cause significant power loss and heat generation, lowering system efficiency and potentially affecting safety.

Using a cable that is too small has real results. The power loss means you get less electricity from your solar panels. The heat can damage the cable's covering, create a fire risk, and cause safety shut-offs. So, matching the cable size to your system's current and distance is not just a good idea; it is a basic rule for safety and good performance.

Technical Specifications of 4mm and 6mm Solar cable

Current-Carrying Capacity of 4mm and 6mm solar cable

Current-carrying capacity, or ampacity, is the most current a cable can carry all the time without getting too hot. The thicker 6mm cable naturally has a higher ampacity than the 4mm cable.

In normal conditions, a single 4mm solar cable can usually carry between 55 and 60 Amps. A single 6mm solar cable, in the same conditions, can usually carry between 70 and 80 Amps. You should check the details from your cable maker, because these numbers can change. If your solar panels produce a high current, you must use a 6mm cable to handle that load safely and well.

Voltage Drop and Its Impact on Solar System Performance

Voltage drop is the loss of voltage that happens when electricity moves through a cable. This loss occurs because of the cable's natural resistance. The longer the cable and the smaller it is, the bigger the voltage drop will be. A 4mm cable might be okay for a very short distance, but its voltage drop becomes too high over longer distances.

A 6mm cable, with its lower resistance, is much better at reducing voltage drop. This means more of the power your panels make actually gets to the inverter. Over the 25-year life of a solar system, even a small reduction in voltage drop saves a lot of energy, giving you a better return on your money.

Compatibility with Different Solar System Sizes

The size of your solar setup is the main guide for picking a cable.

• 4mm Solar Cable: This size is generally good for small home systems. These are usually systems under 5kW where the distance from the panels to the inverter is very short.
• 6mm Solar Cable: This is the normal choice for bigger homes, businesses, and industrial systems. It is needed for handling higher power levels and for any setup where the parts are far apart.

Tip: Never guess the cable size. Always do a voltage drop calculation when you plan your project. A wrong choice will waste your energy and put safety at risk.

Factors to Consider When Choosing a Solar Cable

System Size and Power Output

The total power output of your solar panels is the starting point for your choice. You need to know the most current that will flow through the cable. You can find this by looking at the Isc (Short-Circuit Current) rating on your solar panels and using the needed safety factors.

For a small home system with low maximum current, a 4mm cable will often be enough. For a bigger system with high current, a 6mm cable is not a choice; it is a must. Using a cable that is too small for the current breaks electrical safety rules and puts your whole investment in danger.

Distance Between Solar Panels and Inverter

The distance from the solar panels to the inverter is just as important as the current. Voltage drop gets bigger with cable length. A cable size that is perfect for a 5-meter run may be all wrong for a 20-meter run in the same system.

Good practice says to keep DC voltage drop between 1% and 3%. For longer distances, moving from a 4mm to a 6mm cable is the best way to stay in this range. It is often cheaper to use a bigger cable than to change the system to make the distance shorter.

Budget and Cost Considerations

The first cost of the project is a real worry for everyone. A 4mm solar cable costs less per meter than a 6mm cable. For a small, budget-friendly setup where the 4mm is technically okay, this cost saving makes sense.

But, you must compare this short-term saving to long-term performance. A system with high voltage drop will make less electricity. The money value of that lost energy over 25 years will likely be more than the first savings on the cheaper cable. Think of the cable as a long-term investment in your system's output.

Local Regulations and Safety Standards

You must follow local electrical codes. Most places have strict rules for installing solar systems, including cable types and sizes. These rules are based on standards like the National Electrical Code (NEC) to make sure things are safe.

Using a cable that is too small and does not meet code can lead to a failed inspection, voided warranties, and refused insurance claims. Always make sure the solar cable you choose is properly certified for PV use (look for marks like TÜV EN 50618) and that its use follows all local rules. Hiring a qualified installer is the best way to make sure you follow the rules.

Pro Tip: Put safety and performance before first cost. The right cable size is a one-time cost that protects your system for its whole life.

Comparison of 4mm and 6mm Solar cable

Advantages of 4mm Solar cable

The 4mm solar cable gives certain benefits for the right jobs.

• Lower Price: It costs less than a 6mm cable, making it a smart money choice for small projects.
• Easier to Install: It is lighter and more bendable, making it simpler to pull through pipes and move around tight spots on a roof.
• Good Enough for the Job: For low-current, short-distance situations, it works perfectly well without needing a larger, more expensive cable.

Advantages of 6mm Solar cable

The 6mm solar cable gives clear benefits for difficult installations.

• Handles More Current: Its ability to safely carry more current makes it essential for bigger systems, stopping overheating and making sure you follow codes.
• Better Performance: Its lower resistance cuts down voltage drop, which directly leads to more energy production and higher money returns over time.
• Ready for the Future: Putting in a 6mm cable gives you room for possible future system additions, saving you from the cost of new wires later.

Scenarios for Choosing Each Cable Size

Making the final choice means applying your system's specific details.

Choose a 4mm Solar Cable when:

• The system is a small home installation (usually under 5kW).
• The distance from the panels to the inverter is short (for example, less than 10 meters).
• Voltage drop calculations show the loss will be within an acceptable limit.
• The project budget is a main limit.

Choose a 6mm Solar Cable when:

• The system is a medium-to-large home, business, or industrial installation.
• The wire distance is medium to long (for example, over 15 meters).
• The system's maximum current is high.
• The goal is to get the most energy and make sure of long-term safety.

Quick Tip: If your calculations put you between two sizes, it is always better to pick the larger 6mm cable. The small extra cost is cheap protection for guaranteed performance.

Conclusion

Choosing between 4mm and 6mm solar cable is a technical decision that depends on your system’s current, wiring distance, and local regulations. The 4mm cable offers a cost-effective and practical solution for smaller, simpler systems with shorter runs, while the 6mm cable provides higher performance, enhanced safety, and greater reliability for larger systems or longer distances, ensuring your solar investment performs optimally. As a pro tip, always consult a qualified solar professional—they can perform the necessary calculations to ensure your system’s wiring is optimized for safety, efficiency, and code compliance, giving you full confidence in your investment.
