CU/XLPE/PVC Insulated Power Cable
Application
Power cables are essential for efficient and reliable electrical transmission across various sectors, including construction, energy, and manufacturing. These cables are integral to power distribution systems, industrial facilities, mining operations, and large-scale infrastructure projects. Engineered to handle substantial electrical loads, they ensure stable, continuous power supply even in high-demand environments. With their high durability, excellent insulation, and resistance to extreme conditions like heat, moisture, and mechanical stress, our power cables provide reliable performance while maintaining operational integrity and safety in the most challenging environments. Designed for long-term use, they are critical for supporting the seamless functioning of power-intensive systems.

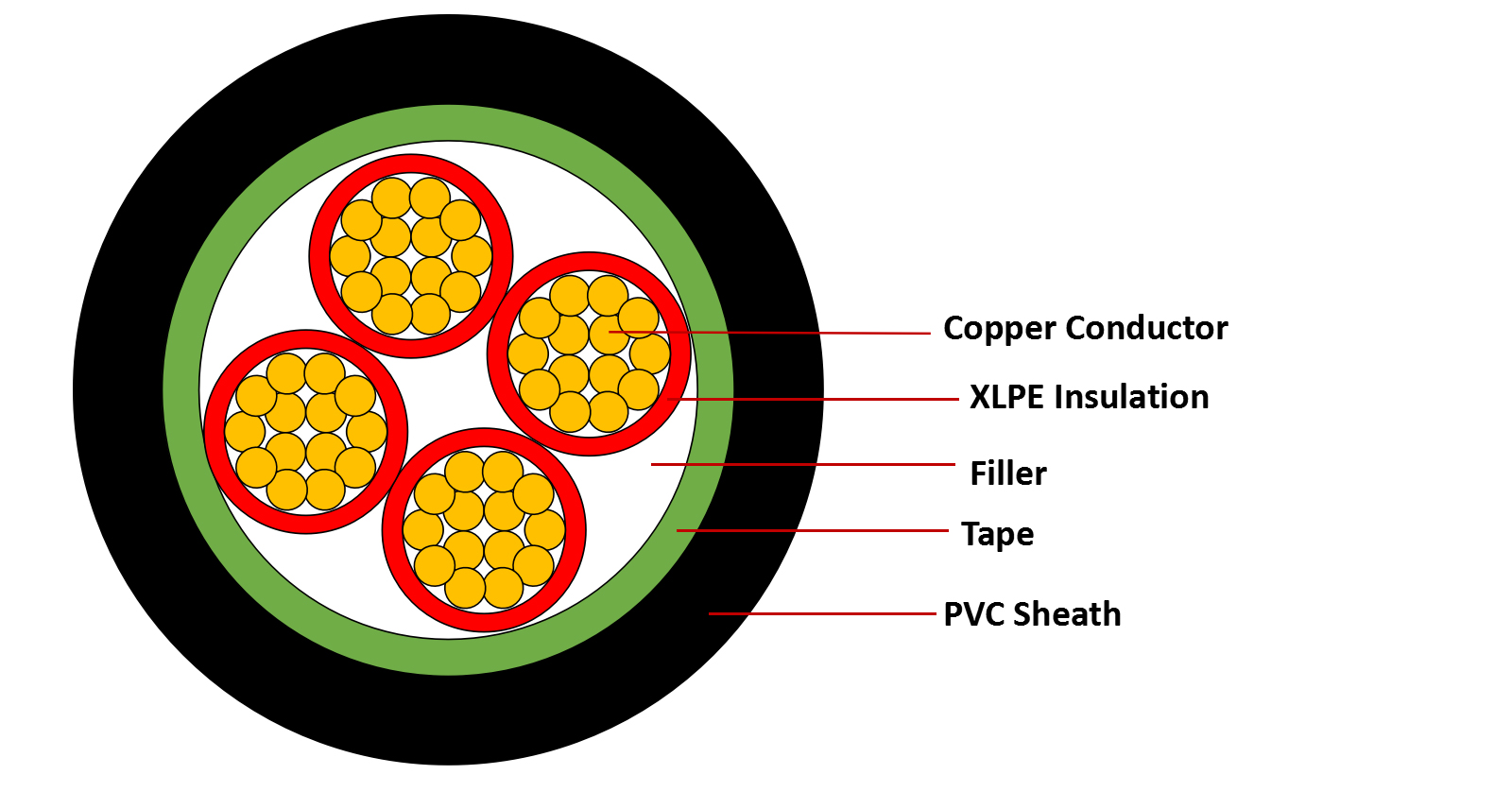

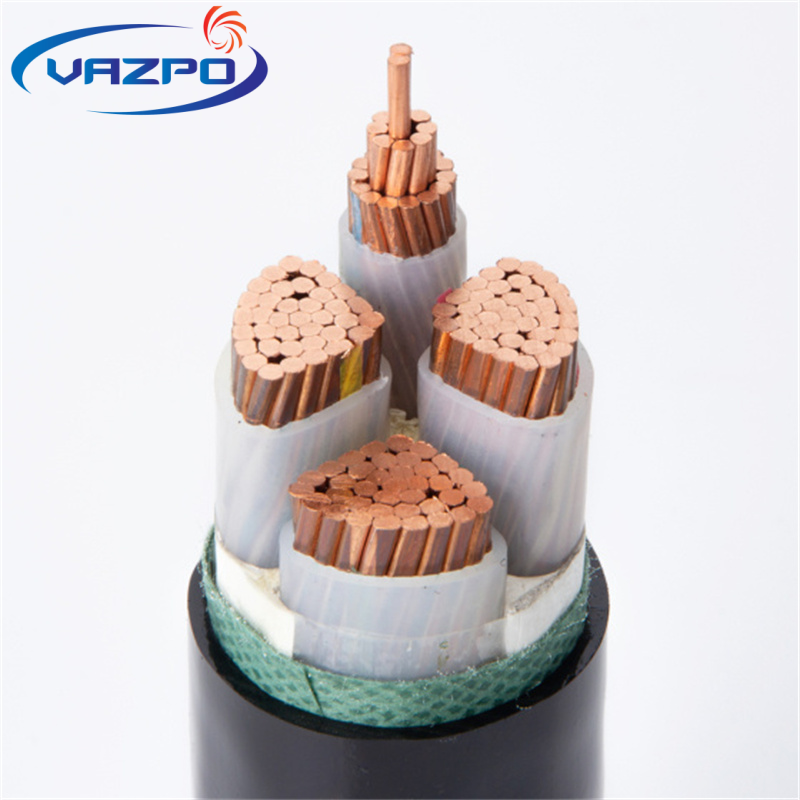

Structure
Conductor: Oxygen-free copper
Insulation: XLPE (cross-linked polyethylene)
Outer sheath: PVC (polyvinyl chloride)
Color: black
Features
1. Reference standards: GB/T12706, IEC60502
2. Certification: CQC
3. Rated voltage: Uo/U is 0.6/1KV
4. Maximum operating temperature of the conductor: 90℃
5. The maximum temperature of the cable conductor during short circuit (duration less than 5 seconds) shall not exceed 250℃;
6. The cable shall be laid with environment temperature no less than 0℃ and with its minimum bending radius as follows.
Single-core unarmored cable: 20D
Single-core armored cable: 15D
Three-core unarmored cable: 15D
Three-core armored cable: 12D
D-actual outer diameter of the cable sample (mm)
Specification
|
XLPE Insulated Power Cable |
YJV |
CU/XLPE/PVC |
|
YJLV |
AL/XLPE/PVC |
|
|
YJV22 |
CU/XLPE/STA/PVC |
|
|
YJLV22 |
AL/XLPE/STA/PVC |
|
|
YJV23 |
CU/XLPE/STA/PE |
|
|
YJLV23 |
AL/XLPE/STA/PE |
|
|
YJV32 |
CU/XLPE/SWA/PVC |
|
|
YJLV32 |
AL/XLPE/SWA/PVC |
|
|
YJV33 |
CU/XLPE/SWA/PE |
|
|
YJLV33 |
AL/XLPE/SWA/PE |
|
PVC Insulated Power Cable |
VV |
CU/PVC/PVC |
|
VLV |
AL/PVC/PVC |
|
|
VV22 |
CU/PVC/STA/PVC |
|
|
VLV22 |
AL/PVC/STA/PVC |
|
|
VV23 |
CU/PVC/STA/PE |
|
|
VLV23 |
AL/PVC/STA/PE |
|
|
VV32 |
CU/PVC/SWA/PVC |
|
|
VLV32 |
AL/PVC/SWA/PVC |
|
|
VV33 |
CU/PVC/SWA/PE |
|
|
VLV33 |
AL/PVC/SWA/PE |
CU XLPE PVC Insulated Power Cable
| No. Cross-section of conductor | Conductor Structure | Insulation Thickness | Sheath Thickness | Approx. O.D. | Approx .Weight | Approx. ampacity | |
| mm2 | N/mm | mm | mm | mm | kg/km | Air (A) | Underground(A) |
| 1×1.5 | 7/0.52 | 0.7 | 1.4 | 5.79 | 45 | 32 | 43 |
| 1×2.5 | 7/0.68 | 0.7 | 1.4 | 6.19 | 57 | 42 | 57 |
| 1×4.0 | 7/0.85 | 0.7 | 1.4 | 6.66 | 75 | 56 | 74 |
| 1×6.0 | 7/1.04 | 0.7 | 1.4 | 7.17 | 97 | 70 | 93 |
| 1×10 | 7/1.45 | 0.7 | 1.4 | 8.21 | 142 | 97 | 127 |
| 1×16 | 7/1.83 | 0.7 | 1.4 | 9.21 | 205 | 125 | 167 |
| 1×25 | 7/2.29 | 0.9 | 1.4 | 10.83 | 304 | 165 | 216 |
| 1×35 | 7/2.65 | 0.9 | 1.4 | 11.83 | 403 | 200 | 261 |
| 1×50 | 10/2.62 | 1 | 1.4 | 13.34 | 555 | 245 | 311 |
| 1×70 | 14/2.62 | 1.1 | 1.4 | 15.25 | 756 | 305 | 388 |
| 1×95 | 19/2.62 | 1.1 | 1.5 | 17.06 | 1005 | 375 | 461 |
| 1×120 | 24/2.62 | 1.2 | 1.5 | 18.67 | 1250 | 435 | 527 |
| 1×150 | 30/2.62 | 1.4 | 1.6 | 20.90 | 1561 | 500 | 592 |
| 1×185 | 37/2.62 | 1.6 | 1.6 | 22.92 | 1910 | 580 | 671 |
| 1×240 | 48/2.62 | 1.7 | 1.7 | 25.54 | 2453 | 685 | 781 |
| 1×300 | 60/2.62 | 1.8 | 1.8 | 28.16 | 3044 | 795 | 886 |
| 1×400 | 60/2.98 | 2 | 1.9 | 31.99 | 4024 | 930 | 1019 |
| 1×500 | 60/3.30 | 2.2 | 2 | 35.42 | 5006 | 1080 | 1170 |
