0.6/1kV Al/XLPE/SWA/PVC Insulated Power Cable
Application
XLPE-insulated power cables rated for 1 kV are designed for efficient power transmission and distribution in AC 50Hz networks with voltages up to 1 kV. These cables are ideal for underground installations in industrial environments, especially where additional mechanical protection is required. They can be securely installed on cable trays, routed through conduits, or mounted along walls, ensuring reliable and safe operation in various applications.
Structure
Conductor: Aluminum
Insulation: XLPE (Cross-Linked Polyethylene)
Outer sheath: PVC (polyvinyl chloride)
Amoured：SWA-Steel Wire Amoured
Insulation Color: Red, yellow, green, blue, black
Sheath Color: black
Features
1. Reference standards: GB/T12706, IEC60502
2. Certification: CQC
3. Rated voltage: Uo/U is 0.6/1KV
4. Maximum operating temperature of the conductor: 90℃
5. The maximum temperature of the cable conductor during short circuit (duration less than 5 seconds) shall not exceed 250℃;
6. The cable shall be laid with environment temperature no less than 0℃ and with its minimum bending radius as follows.
Single-core unarmored cable: 20D
Single-core armored cable: 15D
Three-core unarmored cable: 15D
Three-core armored cable: 12D
D-actual outer diameter of the cable sample (mm)
Physical Properties
1. Elongation of unaged values：≥190%
2. Bending radius: ≥15D
3. Tensile strength of unaged values: ≥16.6 N/mm2
4. Temperature rating: -15~90℃

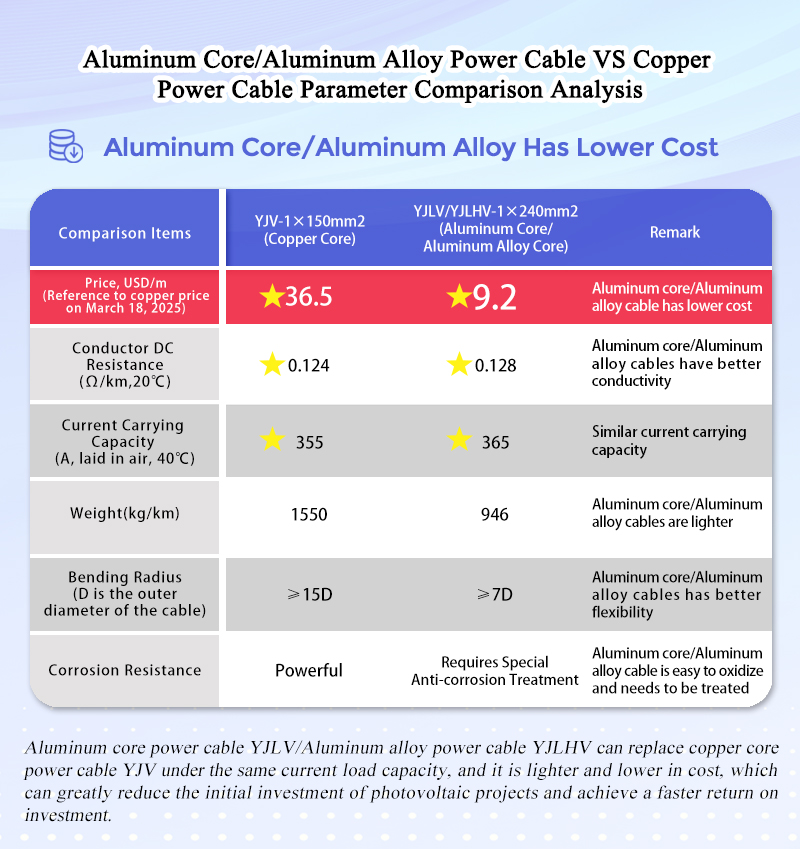

| Aluminum alloy& Aluminum power cable VS copper power cable | |||
| ltems | YJV-1x150mm2 (Copper Core) |
YJLHV/YJLV-1x240mm2 (Aluminum Alloy Core &Aluminum Core) |
Remark |
|
Price (USD/M, Refer to the copper price on March 18, 2025） |
36.5 | 9.2 | Aluminum core/Aluminumalloy cable has lower cost |
|
Conductor DC Resistance(Ω/km,20℃) |
0.124 | 0.128 | Aluminum core/Aluminum alloy cables have better conductivity |
| Current CarryingCapacity (A, laid in air,40℃) |
365 | 355 | Similar current carrying capacity |
| Weight(kg/km) | 1550 | 946 | Aluminum core/Aluminum alloy cables are lighter |
| Bending Radius (D is the outer diameter of the cable) |
≥15D | ≥7D | Aluminum core/Aluminum alloy cables has better flexibility |
| Corrosion Resistance | Powerful | Requires Special Anti-corrosion Treatment |
Aluminum core/Aluminum alloy cables are easy to oxidize and needs to be treated |
| Aluminum alloy power cable YJLHV and Aluminum power cable YJLV can replace copper core power cable YJV under the same current load capacity, and it is lighter and lower in cost, which can greatly reduce the in itial investment of photovoltaic projects and achieve a faster return on investment. | |||
Specification
|
XLPE Insulated Power Cable |
YJV |
CU/XLPE/PVC |
|
YJLV |
AL/XLPE/PVC |
|
|
YJV22 |
CU/XLPE/STA/PVC |
|
|
YJLV22 |
AL/XLPE/STA/PVC |
|
|
YJV23 |
CU/XLPE/STA/PE |
|
|
YJLV23 |
AL/XLPE/STA/PE |
|
|
YJV32 |
CU/XLPE/SWA/PVC |
|
|
YJLV32 |
AL/XLPE/SWA/PVC |
|
|
YJV33 |
CU/XLPE/SWA/PE |
|
|
YJLV33 |
AL/XLPE/SWA/PE |
|
PVC Insulated Power Cable |
VV |
CU/PVC/PVC |
|
VLV |
AL/PVC/PVC |
|
|
VV22 |
CU/PVC/STA/PVC |
|
|
VLV22 |
AL/PVC/STA/PVC |
|
|
VV23 |
CU/PVC/STA/PE |
|
|
VLV23 |
AL/PVC/STA/PE |
|
|
VV32 |
CU/PVC/SWA/PVC |
|
|
VLV32 |
AL/PVC/SWA/PVC |
|
|
VV33 |
CU/PVC/SWA/PE |
|
|
VLV33 |
AL/PVC/SWA/PE |
