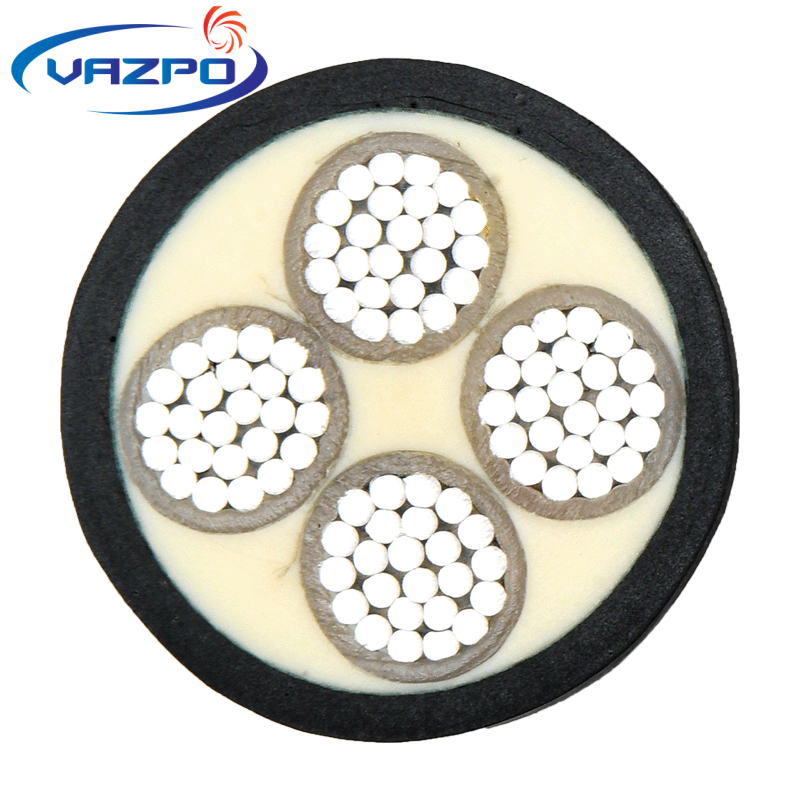

0.6/1KV 4 Core AL/XLPE/PVC Insulated Unarmoured Power Cable
Application
Aluminum Alloy Power Cable is designed for dependable and secure power transmission across a wide range of industries. It excels in environments that demand robust protection, such as in underground networks, industrial complexes, mining sites, and construction zones. This cable is also well-suited for electrical grids, utility systems, and areas exposed to harsh weather or physical stress, offering superior resilience and safety. Its adaptability makes it a reliable solution for both low and high-voltage installations, meeting the needs of diverse sectors, from infrastructure to manufacturing.

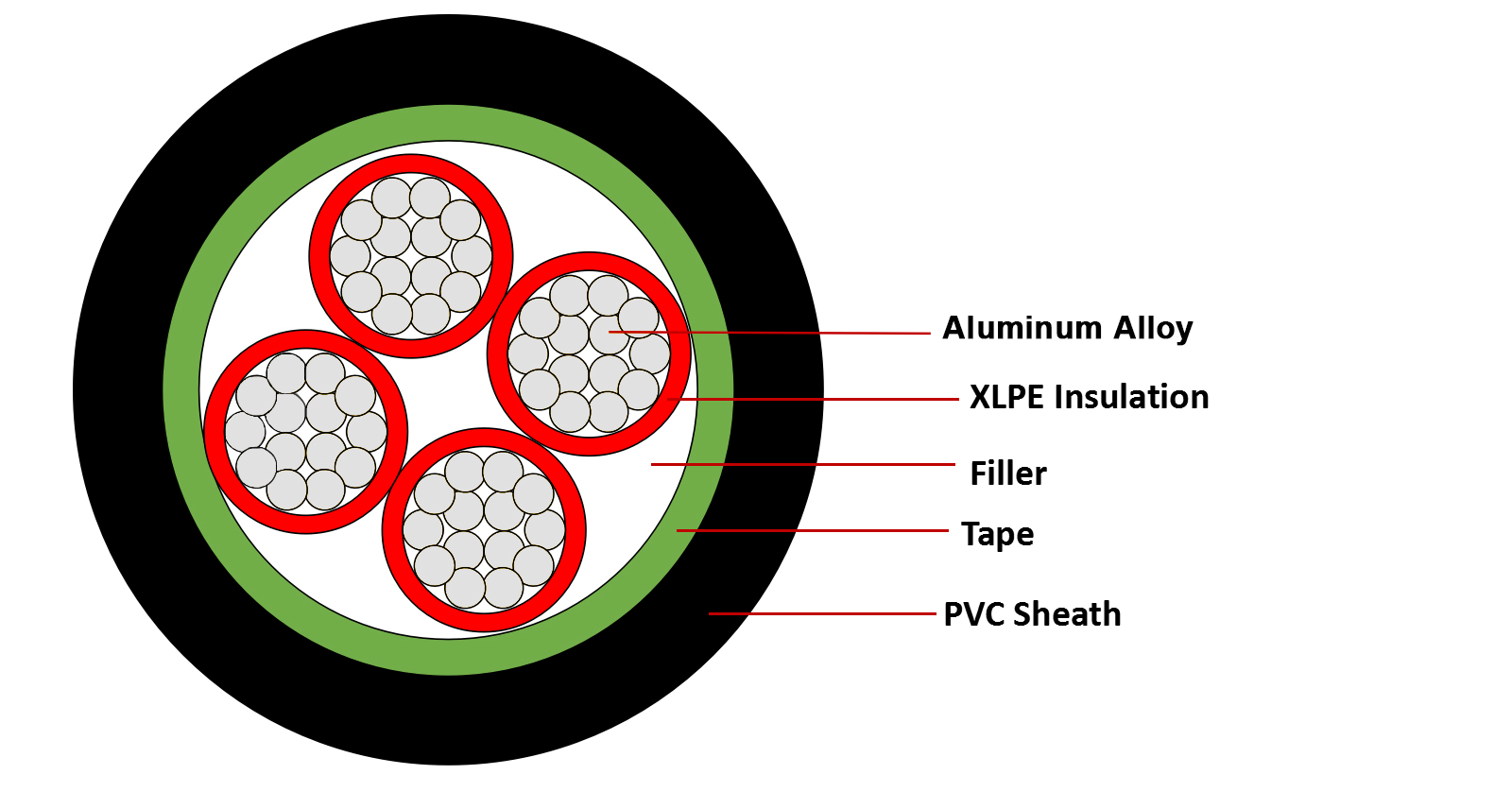

Structure
Conductor: Aluminum Alloy
Insulation: XLPE (Cross-linked polyethylene)
Outer Sheath: PVC (Polyvinyl Chloride)
Color: Black
Insulation: XLPE (Cross-linked polyethylene)
Outer Sheath: PVC (Polyvinyl Chloride)
Color: Black
Features
1. Reference standards: GB/T12706, IEC60502
2. Certification: CQC
3. Rated voltage: Uo/U is 0.6/1KV
4. Maximum operating temperature of the conductor: 90℃
5. The maximum temperature of the cable conductor during short circuit (duration less than 5 seconds) shall not exceed 250℃;
6. The cable shall be laid with environment temperature no less than 0℃ and with its minimum bending radius as follows.
Single-core unarmored cable: 20D
Single-core armored cable: 15D
Three-core unarmored cable: 15D
Three-core armored cable: 12D
D-actual outer diameter of the cable sample (mm)
| Aluminum alloy& Aluminum power cable VS copper power cable | |||
| ltems | YJV-1x150mm2 (Copper Core) |
YJLHV/YJLV-1x240mm2 (Aluminum Alloy Core &Aluminum Core) |
Remark |
|
Price (USD/M, Refer to the copper price on March 18, 2025） |
36.5 | 9.2 | Aluminum core/Aluminumalloy cable has lower cost |
|
Conductor DC Resistance(Ω/km,20℃) |
0.124 | 0.128 | Aluminum core/Aluminum alloy cables have better conductivity |
| Current CarryingCapacity (A, laid in air,40℃) |
365 | 355 | Similar current carrying capacity |
| Weight(kg/km) | 1550 | 946 | Aluminum core/Aluminum alloy cables are lighter |
| Bending Radius (D is the outer diameter of the cable) |
≥15D | ≥7D | Aluminum core/Aluminum alloy cables has better flexibility |
| Corrosion Resistance | Powerful | Requires Special Anti-corrosion Treatment |
Aluminum core/Aluminum alloy cables are easy to oxidize and needs to be treated |
| Aluminum alloy power cable YJLHV and Aluminum power cable YJLV can replace copper core power cable YJV under the same current load capacity, and it is lighter and lower in cost, which can greatly reduce the in itial investment of photovoltaic projects and achieve a faster return on investment. | |||
