What is the PV2000DC-TCA Tinned Copper-Clad Aluminum Solar DC Cable?

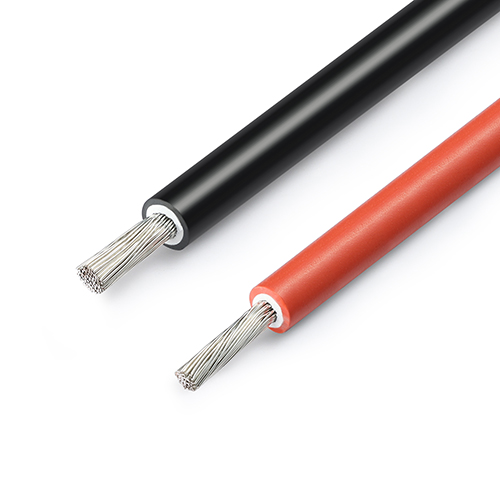

What is the PV2000DC-TCA Solar Dc Cable?
The PV2000DC-TCA cable is a specialized solar DC cable designed for use in photovoltaic (PV) systems. This cable features a tinned copper-clad aluminum (TCCA) conductor, which provides an optimal balance of performance, cost-efficiency, and enhanced durability for solar applications. The use of a copper-clad aluminum core offers significant advantages. It maintains excellent electrical connectivity through the outer copper layer, while offering superior cost-effectiveness compared to pure copper conductors, without compromising key performance metrics in well-designed systems.
The tinned coating on the copper-clad aluminum conductor provides robust corrosion resistance, safeguarding the conductor from oxidation and environmental degradation over time. This ensures stable electrical performance and reliable power transmission throughout the lifespan of the PV system. Specifically engineered for solar DC applications, such as interconnecting PV modules, combiners, and inverters, the PV2000DC-TCA cable is an ideal choice for both residential and commercial installations where long-term reliability and economic value are paramount.
A cornerstone of its durability is its enhanced cable construction. The PV2000DC-TCA features thickened insulation and a robust outer sheath, specifically formulated to provide superior protection. These materials offer increased resistance to cracking, aging, and degradation from prolonged exposure to harsh conditions. This advanced design ensures exceptional resistance to ultraviolet (UV) radiation, ozone, moisture, and a wide temperature range, directly extending the cable's service life in demanding outdoor environments.
Overall, the PV2000DC-TCA cable represents a reliable and cost-optimized solution for solar DC applications, combining the economic benefits of a tinned copper-clad aluminum conductor with a ruggedized construction to ensure the safe, efficient, and durable operation of photovoltaic systems.
Key Features of the PV2000DC-TCA Cable
Engineered for reliable, long-term performance, the PV2000DC-TCA cable is rated for a maximum voltage of DC2000V and is suitable for both ground-mounted and rooftop photovoltaic systems. The cable's cross-sectional area can be customized to meet specific project requirements, ensuring efficient power transmission with minimal losses.
The conductor, made of tinned copper-clad aluminum, provides a cost-effective and reliable foundation. However, the cable's exceptional longevity is primarily attributed to its advanced material science. The thickened, high-quality insulation and mechanically tough sheath are specifically designed to withstand extreme environmental stress. These materials provide outstanding anti-aging properties and superior UV resistance, preventing brittleness and insulation breakdown over decades of exposure.
This focus on protective construction ensures the cable's integrity against abrasion, moisture ingress, and chemical exposure. These combined design features make the PV2000DC-TCA cable a highly durable and suitable choice for the most demanding solar power applications, delivering a optimal balance of performance, protection, and lifetime cost efficiency.
Technical Comparison: PV2000DC-TCA vs PV1-F
To better illustrate the advantages of the PV2000DC-TCA cable, the following table provides a direct comparison with a standard tinned copper Solar Cable (PV1-F model).
| Comparison Items | Tinned Copper Clad Aluminum (TCA) Solar Cable | Tinned Copper Solar Cable (PV1-F) | Conclusions (Advantages of TCA Solar Cable) |
| Model | PV 2000DC TCA | PV1-F | -- |
| Conductive materials | Tinned Copper Clad Aluminum | Tinned Copper | Consistent copper contact layer ensures stable terminal performance. |
| Conductor structure | 56 / 0.33 mm | 56 / 0.28 mm | Multi-stranded structure for better flexibility and workability. |
| Conductor resistance | 4.85 Ω/km | 5.09 Ω/km | Lower resistance, equivalent to pure copper performance. |
| Conductivity | Equivalent | Standard | System efficiency is not affected; offers cost savings. |
| Rated voltage | DC 2000V | DC 1500V | More suitable for modern high-voltage PV systems, enhancing system efficiency and reducing losses. |
| Insulation thickness | 1.10 mm (Thickened) | 0.65 mm | Thickened insulation and sheath significantly enhance weather resistance, UV protection, and anti-aging properties, extending service life. |
| Sheath thickness | 0.85 mm (Thickened) | 0.65 mm |
Certifications & Quality Assurance
As a trusted supplier, we ensure that the PV2000DC-TCA Solar Cable meets the highest industry standards. Our product is certified by TUV, confirming its full compliance with the stringent requirements of PPP 58209A:2022 standards for single-core, DC 2000V photovoltaic cables. This independent certification guarantees the safety, performance, and durability of our cable for your critical solar energy projects.
